External Driver vs Built-in Driver BLDC Motor: How OEM Buyers Choose the Right Brushless Motor Solution

Introduction: Why BLDC Motor Driver Selection Matters for OEM Projects

Brushless DC motors, often called BLDC motors, are widely used in modern equipment because they offer high efficiency, long service life, low maintenance, smooth operation, and better speed control compared with traditional brushed motors. From industrial automation and medical devices to HVAC systems, pumps, fans, robotics, AGV, AMR, and smart commercial equipment, BLDC motors are becoming a preferred choice for many OEM manufacturers.

However, a brushless motor cannot run properly like a simple brushed DC motor by only connecting two wires to a DC power supply. A BLDC motor needs electronic commutation. This means it requires a motor driver or controller to switch current through the stator windings and control the rotor movement. For OEM buyers, this creates an important design question:

Should the BLDC motor use an external driver, or should it use a built-in driver?

An external driver BLDC motor uses a separate controller outside the motor body. The motor and driver are independent parts connected by wires. A built-in driver BLDC motor, also known as an integrated-driver BLDC motor or brushless motor with built-in controller, has the driver electronics integrated inside or directly attached to the motor structure.

Both solutions have advantages. External drivers usually provide better flexibility, stronger heat dissipation, higher power capability, and easier maintenance. Built-in drivers offer compact design, simpler wiring, faster installation, and a cleaner product structure. The best choice depends on application, power level, control requirement, installation space, thermal condition, maintenance plan, cost target, and production scale.

This article explains the key differences between external driver BLDC motors and built-in driver BLDC motors, helping OEM buyers select the right brushless motor solution for real equipment applications.

What Is a BLDC Motor Driver?

Basic Definition of a BLDC Driver

A BLDC motor driver is an electronic control unit used to operate a brushless DC motor. It controls the current flow into the motor windings and creates the correct rotating magnetic field. Without a suitable driver, a BLDC motor cannot start, rotate, change direction, or maintain stable speed correctly.

The driver may also manage speed control, direction control, braking, overload protection, overcurrent protection, undervoltage protection, soft start, temperature protection, Hall sensor feedback, encoder feedback, and communication with the main control board.

In simple terms, the motor provides mechanical power, while the driver controls how that power is generated and delivered.

Why BLDC Motors Need a Driver

A brushed DC motor uses brushes and a commutator to mechanically switch current. A BLDC motor removes brushes and uses electronic commutation instead. This improves service life and efficiency, but it also means the motor needs a driver to switch the phase currents electronically.

Most BLDC motors have three phase wires. Some also include Hall sensor wires or encoder wires for feedback. The driver reads the rotor position or estimates it through sensorless control, then energizes the correct motor phases at the right time.

This is why BLDC motor selection should never be separated from driver selection. For OEM projects, motor and driver matching is one of the most important steps.

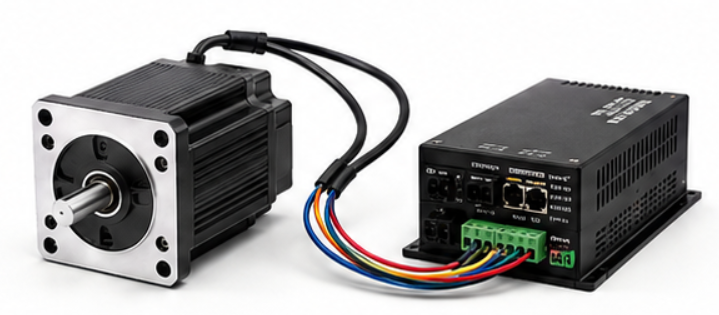

What Is an External Driver BLDC Motor?

Basic Definition

An external driver BLDC motor uses a separate controller located outside the motor. The motor body contains the stator, rotor, bearings, shaft, housing, and possibly Hall sensors or encoder components. The driver is installed separately in the equipment’s control box, PCB area, electrical cabinet, or another protected location.

This is a common solution in industrial automation, robotics, AGV drive systems, pumps, fans, medical devices, and high-performance motion control applications.

How External Driver BLDC Motors Work

The motor is connected to the external driver through phase wires and feedback wires. The driver receives power from the system and control signals from the main control board. It then controls the motor according to the required speed, torque, direction, braking, or position command.

Depending on the system, the external driver may support simple speed control, PWM input, analog voltage control, RS485, CAN, UART, pulse control, closed-loop speed control, or position control.

Main Advantages of External Driver BLDC Motors

External driver BLDC motors are highly flexible. The OEM buyer can choose a motor and driver combination according to power, voltage, current, control method, protection level, communication interface, and installation layout.

External drivers are also easier to replace or upgrade. If the driver fails, it can often be replaced without changing the motor. If the application needs a new communication protocol or control function, the driver can be updated while keeping the motor design stable.

Another important advantage is heat management. Since the driver electronics are outside the motor, heat from the power components can be separated from motor heat. This is useful for high-power motors, continuous-duty applications, or equipment working in warm environments.

Main Limitations of External Driver BLDC Motors

The main disadvantage is that the system becomes more complex. More wiring is required between the motor and driver. The installation space must accommodate both parts. The buyer must also confirm compatibility between motor, driver, power supply, and main control board.

For small equipment or products that need very fast assembly, external drivers may increase wiring work and installation time.

What Is a Built-in Driver BLDC Motor?

Basic Definition

A built-in driver BLDC motor integrates the driver electronics inside the motor body or into a compact motor assembly. It is also called an integrated BLDC motor, BLDC motor with built-in controller, or brushless motor with integrated driver.

Instead of using a separate driver box, the motor itself contains the electronic control function. The buyer only needs to connect power and control wires according to the motor design.

How Built-in Driver BLDC Motors Work

Inside a built-in driver BLDC motor, the driver circuit controls the motor phases directly. The motor may accept simple control signals such as start/stop, speed command, direction signal, PWM signal, analog voltage, or communication input.

Because the driver is already matched with the motor, the integration work is much easier for the equipment manufacturer. This makes built-in driver motors attractive for compact devices, fans, pumps, smart equipment, small automation systems, and applications where simplified wiring is important.

Main Advantages of Built-in Driver BLDC Motors

The biggest advantage is integration. The motor and driver are designed as one unit, which reduces external wiring, saves installation space, and simplifies assembly. For OEM production lines, this can reduce labor time and lower the risk of wiring mistakes.

Built-in driver BLDC motors can also make the final product look cleaner and more compact. For small devices or equipment with limited control box space, this is a strong advantage.

Another benefit is that the motor and driver are already matched by the supplier. This helps reduce compatibility problems during product development.

Main Limitations of Built-in Driver BLDC Motors

The main limitation is heat. The driver electronics are close to the motor, so heat from both the motor and driver must be managed within a limited space. For high-power or continuous-duty applications, this can become a challenge.

Built-in driver motors are also less flexible. If the customer wants to change control method, communication interface, current limit, protection logic, or software parameters, it may require redesign or supplier-side customization.

Maintenance can also be more complicated. If the built-in driver fails, the whole motor assembly may need to be replaced.

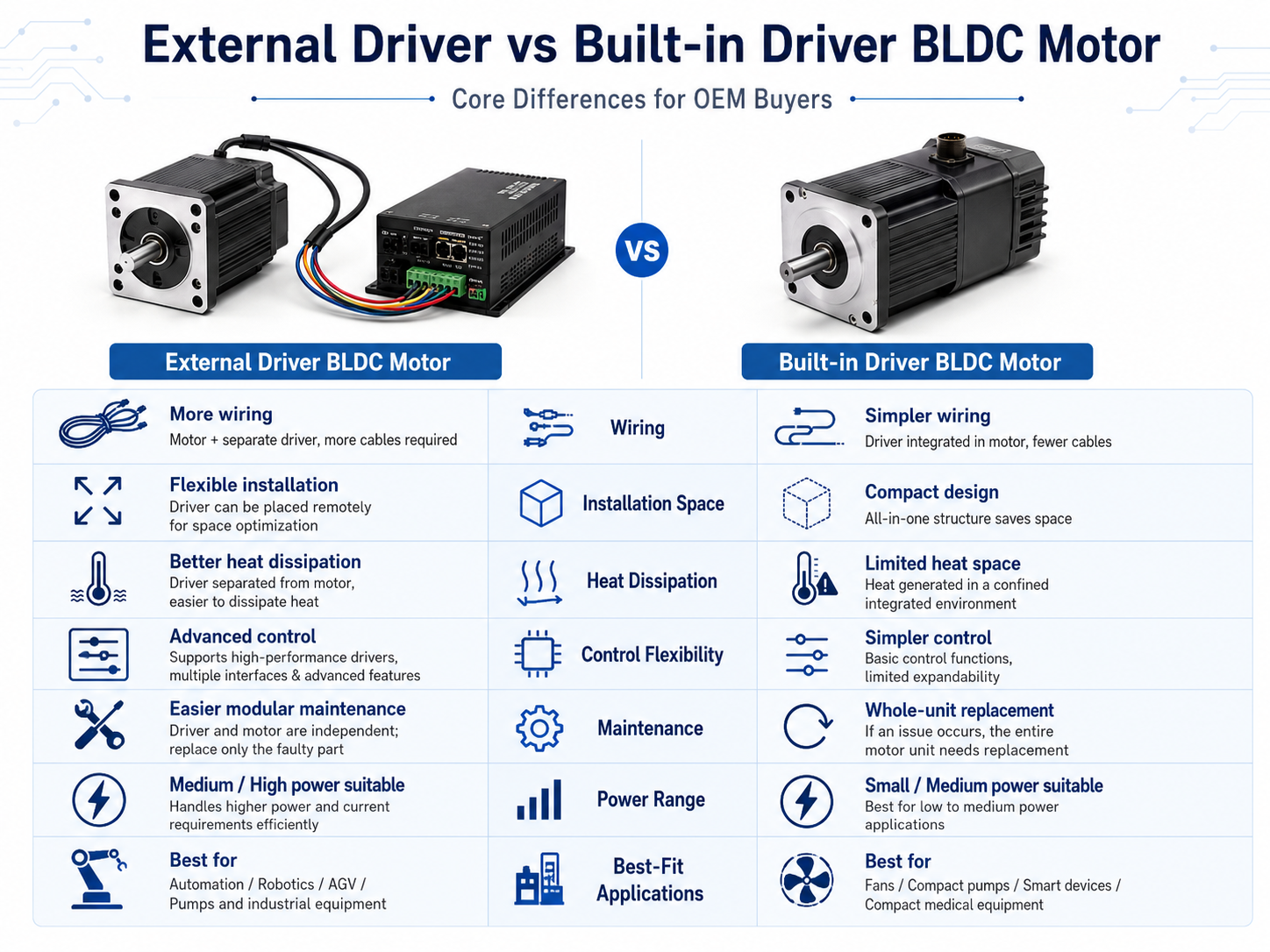

External Driver vs Built-in Driver BLDC Motor: Core Differences

Difference in Structure

An external driver solution separates the motor and controller. The driver is an independent component. A built-in driver solution integrates the driver into the motor assembly.

This structural difference affects wiring, installation, heat dissipation, maintenance, cost, customization, and long-term service strategy.

Difference in Wiring

External driver BLDC motors require more wiring between motor and driver. This may include three phase wires, Hall sensor wires, encoder wires, brake wires, temperature sensor wires, and grounding wires depending on the design.

Built-in driver BLDC motors usually require fewer external wires. In many cases, only power input, speed control, direction, start/stop, and signal wires are needed. This can make installation easier.

Difference in Installation Space

External drivers require space for both the motor and the driver. This may be acceptable in equipment with an electrical cabinet or control box.

Built-in driver motors save space because the driver is integrated. They are often preferred in compact devices, small fans, pumps, and equipment where a separate controller is inconvenient.

Difference in Heat Dissipation

External drivers usually offer better heat dissipation flexibility. The driver can be mounted on a heat sink, metal plate, control cabinet, or ventilated area. This is helpful for high-power or continuous-duty applications.

Built-in driver motors have a more compact thermal structure. The motor and driver share the same space or housing area, so thermal design must be carefully evaluated.

Difference in Power Range

External driver solutions are often better for medium-power and high-power BLDC motor applications. The separate driver can support higher current, better cooling, and more advanced protection.

Built-in driver solutions are usually more suitable for small to medium power applications where compact integration and simple installation are more important than maximum power output.

Difference in Control Flexibility

External drivers usually provide more control options. OEM buyers can choose drivers with different communication methods, control modes, current ratings, and feedback functions.

Built-in drivers are more fixed. They are convenient when the control requirement is simple or already defined, but less flexible if the equipment needs special algorithms or advanced communication.

Difference in Maintenance

External drivers are easier to replace separately. If the driver fails, the motor may still be usable. This can reduce maintenance cost in some industrial systems.

For built-in driver motors, driver failure may require replacing the whole motor assembly. However, in small products, replacing one integrated unit may still be easier than troubleshooting separate components.

Difference in Cost

Built-in driver motors may reduce system assembly cost because they simplify wiring and installation. However, the motor unit itself may cost more than a motor without a driver.

External driver solutions may have a lower motor cost but require a separate driver, more wiring, and more installation work. OEM buyers should compare total system cost, not only motor unit price.

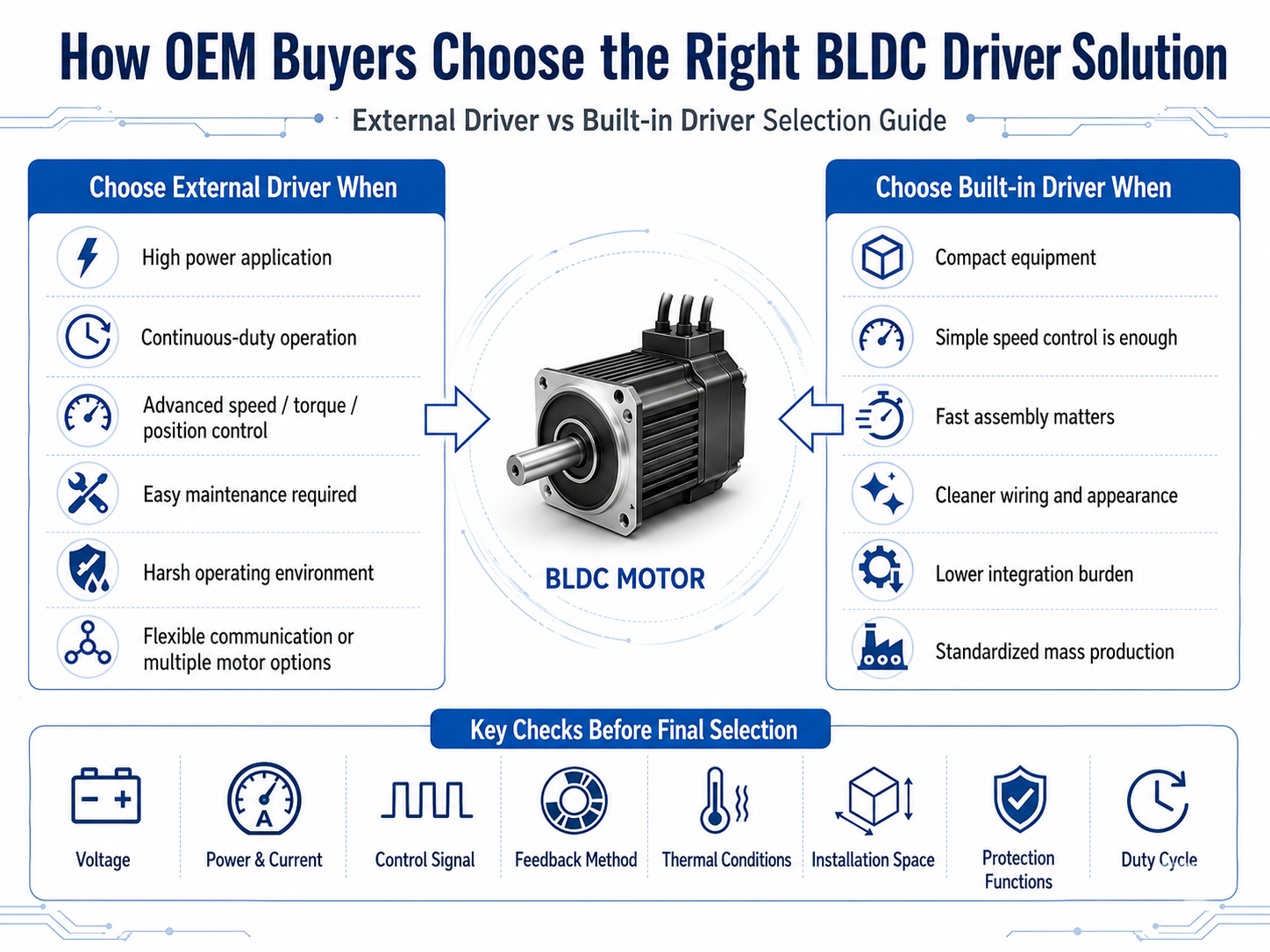

When Should OEM Buyers Choose an External Driver BLDC Motor?

High-Power Applications

For high-power BLDC motor applications, an external driver is usually more practical. The driver can be designed with larger power components, better cooling, stronger current capacity, and more protection functions.

Examples include AGV drive motors, industrial pumps, large fans, automation equipment, conveyor systems, and robot drive units.

Continuous-Duty Operation

If the motor runs continuously for long periods, heat management becomes critical. External drivers allow better separation of motor heat and driver heat. This helps improve reliability and service life.

Advanced Control Requirements

External drivers are better when the application needs advanced speed control, torque control, position control, encoder feedback, communication interface, or special control logic.

For robotics, servo-like systems, AGVs, AMRs, and precision automation equipment, external drivers often provide better development flexibility.

Easy Maintenance Requirements

In industrial equipment, maintenance teams often prefer modular systems. If the motor and driver are separate, each part can be diagnosed and replaced individually.

This can reduce downtime and make troubleshooting easier.

Harsh Operating Environments

If the motor is installed in a hot, vibrating, dusty, humid, or mechanically stressed area, it may be better to keep the driver electronics in a protected control box. This can improve electronic reliability.

Projects with Multiple Motor Options

If one equipment platform uses different motor powers or gear ratios, an external driver architecture may allow more flexible motor replacement while keeping the control system consistent.

When Should OEM Buyers Choose a Built-in Driver BLDC Motor?

Compact Equipment

For compact products with limited space, a built-in driver BLDC motor can simplify design. The motor and driver are integrated, reducing the need for extra controller space.

Examples include compact fans, small pumps, intelligent appliances, smart medical devices, electric curtains, compact actuators, and commercial devices.

Simple Speed Control

If the application only requires start/stop, direction control, and simple speed regulation, a built-in driver may be enough.

This reduces development complexity and speeds up product integration.

Fast Assembly and Mass Production

In mass production, fewer wires and fewer components can improve assembly efficiency. A built-in driver motor reduces wiring steps and helps avoid connection mistakes.

This can be valuable for OEM factories producing large quantities of devices.

Cleaner Product Design

Built-in driver motors can make the final equipment layout cleaner. There is no separate controller box, fewer cables, and less visible wiring.

This is useful in products where appearance, compact layout, and easy installation matter.

Lower Development Burden

Because the motor and driver are already matched, buyers do not need to spend as much time selecting and debugging a separate driver. This can be helpful for companies that do not have strong motor control engineering resources.

Application Comparison: External Driver or Built-in Driver?

HVAC Fans and Air Conditioner Motors

For HVAC fans, both external and built-in driver options can be used. External drivers are suitable for higher-power systems or applications requiring special speed control. Built-in drivers are suitable for compact EC fan motors where simplified wiring and integrated control are preferred.

For air conditioner OEM buyers, the decision depends on fan power, installation space, control board design, noise requirement, protection level, and after-sales strategy.

Pumps

For pumps, built-in driver motors are useful in compact water pumps, circulation pumps, and small appliance pumps. External drivers may be better for industrial pumps, high-power pumps, or systems requiring advanced speed control.

Robotics

Robotics applications often require precise control and feedback. External drivers are commonly used because they allow encoder integration, torque control, communication, and easier tuning. However, small robots or compact modules may use built-in driver motors to save space.

AGV and AMR Systems

AGV and AMR drive systems usually use external drivers because they require higher power, braking, encoder feedback, communication, thermal control, and robust protection.

Medical Equipment

Medical equipment may use either solution. Built-in driver motors are suitable for compact, quiet, and simple motion modules. External drivers are better for precision movement, advanced control, or strict thermal separation.

Industrial Automation

Industrial automation systems often prefer external drivers because they support modular maintenance, advanced control, higher power, and integration with PLC or industrial communication systems.

Smart Commercial Equipment

Built-in driver BLDC motors are suitable for vending machines, kiosks, smart storage, electric display devices, and small automated mechanisms when the control requirement is simple and compact design is important.

Key Parameters to Confirm Before Choosing a BLDC Driver Solution

Voltage

Common BLDC motor voltages include 12V, 24V, 36V, 48V, 110V, 220V, and customized options depending on the system. OEM buyers should confirm rated voltage and operating voltage range.

Power and Current

Power and current determine the driver capacity. The driver must support rated current, peak current, startup current, and overload conditions.

External drivers are easier to design for higher current. Built-in drivers must be carefully evaluated for thermal safety.

Speed Control Method

Buyers should confirm whether the motor needs fixed speed, PWM speed control, analog voltage control, closed-loop speed control, or communication-based speed control.

Direction Control

Some applications only need one direction. Others need forward and reverse operation. Direction control should be confirmed early.

Feedback Method

BLDC motors may use Hall sensors, sensorless control, encoders, or other feedback methods. For precision applications, encoder feedback may be required.

Communication Interface

Some external drivers support RS485, CAN, UART, Modbus, pulse signal, or analog signal. Built-in drivers may have fewer communication options unless customized.

Protection Functions

Important protection functions include overcurrent protection, overvoltage protection, undervoltage protection, overtemperature protection, stall protection, short-circuit protection, and reverse polarity protection.

Operating Environment

Temperature, humidity, dust, vibration, airflow, and installation position affect driver selection. Built-in drivers need special attention to heat and sealing.

EMC and Electrical Noise

For medical devices, commercial products, or sensitive electronics, EMC performance should be considered. Wiring length and driver layout can affect electromagnetic interference.

Maintenance Strategy

If the equipment needs easy field service, external drivers may be better. If the product is designed for quick module replacement, built-in drivers may be acceptable.

External Driver BLDC Motor Advantages for OEM Buyers

Greater Flexibility

External drivers allow OEM buyers to choose different driver models for different control needs. This is useful for projects with multiple product versions.

Better Thermal Management

The driver can be placed in a cooler or better-ventilated area. This improves reliability for high-load applications.

Easier Troubleshooting

Separate components make it easier to test whether a problem comes from the motor, driver, wiring, power supply, or main control board.

Suitable for Advanced Control

External drivers are better for systems requiring closed-loop control, encoder feedback, communication, torque control, or high dynamic response.

Better for Industrial Applications

Industrial equipment often values modular maintenance, high power capability, and flexible control, making external drivers a common choice.

Built-in Driver BLDC Motor Advantages for OEM Buyers

Compact Structure

The integrated design saves space and reduces the number of components in the final equipment.

Simple Wiring

Fewer wires can reduce assembly errors and improve production efficiency.

Faster Product Development

Because the driver is already matched to the motor, OEM buyers can reduce time spent on driver selection and debugging.

Cleaner Appearance

Integrated motors help create a clean internal layout, which is useful for commercial, medical, and consumer-facing products.

Good for Standardized Mass Production

When the product requirement is stable and the application is not too high-power, built-in driver motors can be convenient for mass production.

Common Mistakes When Choosing External or Built-in Drivers

Choosing Built-in Driver Only for Convenience

Built-in drivers are convenient, but they are not always suitable. If the motor runs continuously under high load, heat may become a serious problem.

Choosing External Driver Without Considering Wiring Complexity

External drivers provide flexibility, but they require more wiring and installation work. This can increase assembly cost and troubleshooting time.

Ignoring Heat Dissipation

Driver heat is one of the most common problems in BLDC motor applications. Buyers should test the motor and driver under real load conditions.

Not Confirming Control Signal Compatibility

Different drivers may require different input signals. PWM, analog voltage, pulse, direction signal, brake signal, and communication protocol should be confirmed.

Ignoring Protection Requirements

A low-cost driver without proper protection may cause motor failure or system damage. Protection functions should match the application risk.

Not Testing Under Real Conditions

No-load testing is not enough. The motor and driver should be tested with the final load, housing, airflow, ambient temperature, and duty cycle.

How to Choose Between External Driver and Built-in Driver BLDC Motor

Step 1: Define the Application

Start with the real application. What does the motor drive? Is it a fan, pump, wheel, actuator, gear motor, robot joint, blower, or conveyor? The application determines power, duty cycle, control method, and thermal requirement.

Step 2: Confirm Power Level

For higher power, external drivers are usually safer and more flexible. For small to medium power, built-in drivers may be practical.

Step 3: Evaluate Installation Space

If there is enough space for a separate controller, external driver design is possible. If space is very limited, built-in driver design may be better.

Step 4: Check Control Requirements

If the system requires advanced control, communication, or precise feedback, external drivers are often better. If the control is simple, built-in drivers may be enough.

Step 5: Review Heat Conditions

Consider ambient temperature, motor load, running time, enclosure design, and airflow. If thermal conditions are difficult, external drivers may reduce risk.

Step 6: Consider Maintenance

If field maintenance and component-level replacement are important, external drivers are preferred. If module replacement is acceptable, built-in driver motors can work well.

Step 7: Compare Total System Cost

Do not compare only motor price. Include driver cost, wiring cost, assembly labor, testing time, failure risk, and after-sales cost.

Step 8: Test Samples Before Mass Production

The final decision should be verified by real-load testing. Check speed stability, current, temperature rise, noise, vibration, protection behavior, and controller response.

How Modar Motor Supports BLDC Motor Driver Selection

Customized Brushless Motor Solutions

Modar Motor supports customized brushless motor solutions for OEM buyers, including external driver BLDC motors and built-in driver BLDC motors. Depending on the application, the motor can be designed for specific voltage, speed, power, shaft structure, mounting method, wiring, connector, sensor feedback, and control requirement.

Motor and Driver Matching Support

For BLDC motor projects, matching the motor and driver is critical. Modar Motor can help buyers evaluate motor parameters, load conditions, power supply, speed control method, and driver requirements before sample production.

This helps reduce common problems such as startup failure, overheating, unstable speed, controller mismatch, excessive noise, and wiring errors.

Suitable for HVAC, Pumps, Automation, Robotics, and Medical Devices

External and built-in driver BLDC solutions can be applied in HVAC fans, air conditioner systems, pumps, industrial automation, robotics, AGV and AMR systems, medical equipment, smart commercial equipment, and customized motion control devices.

Practical OEM/ODM Support

For OEM buyers, a motor is rarely just a standard component. It must match the product structure and control system. Modar Motor can support requirement analysis, drawing confirmation, sample testing, customization, and mass production follow-up.

This allows buyers to choose not only a motor, but a complete motion solution suitable for their equipment.

Recommended Inquiry Information for OEM Buyers

Application

Describe what the motor will drive and how it operates.

External or Built-in Driver Preference

Mention whether you prefer an external driver or built-in driver. If unsure, provide application details and ask the supplier to recommend.

Voltage and Power

Provide rated voltage, voltage range, power, and expected current if known.

Speed Requirement

Confirm rated speed, speed range, and speed control method.

Torque or Load Requirement

Provide load information, torque, fan size, pump load, wheel load, or mechanical structure.

Control Signal

Confirm PWM, analog voltage, switch signal, RS485, CAN, UART, or other control interface.

Feedback Requirement

Mention whether Hall sensors, encoder, FG signal, speed feedback, or position feedback is required.

Running Duty

Provide continuous or intermittent operation, running time, stop time, and daily working hours.

Environment

Mention ambient temperature, humidity, dust, vibration, enclosure design, and airflow.

Quantity

Provide sample quantity, pilot order quantity, and estimated annual demand.

Product FAQ: External Driver vs Built-in Driver BLDC Motor

What is the difference between external driver and built-in driver BLDC motor?

An external driver BLDC motor uses a separate controller outside the motor. A built-in driver BLDC motor integrates the driver electronics inside or directly with the motor assembly. External drivers offer more flexibility, while built-in drivers provide simpler wiring and compact design.

Which is better, external driver or built-in driver?

Neither is always better. External drivers are better for high power, advanced control, continuous operation, and easier maintenance. Built-in drivers are better for compact equipment, simple control, fast assembly, and clean product design.

Does every brushless motor need a driver?

Yes. A BLDC motor needs a driver for electronic commutation. The driver may be external or built into the motor.

Can a built-in driver BLDC motor control speed?

Yes. Many built-in driver BLDC motors support speed control through PWM, analog voltage, or customized control signals. The exact method depends on the motor design.

Is an external driver better for high-power BLDC motors?

In most cases, yes. External drivers are usually better for high-power applications because they provide better heat dissipation, higher current capacity, and more flexible protection design.

Is a built-in driver BLDC motor easier to install?

Yes. Built-in driver motors usually require fewer external wires and no separate driver box, making installation faster and cleaner.

Which solution is better for HVAC fans?

Both can be used. Built-in driver BLDC motors are suitable for compact EC fan designs, while external drivers are better for higher-power fans or systems requiring special control logic.

Which solution is better for AGV or AMR systems?

External driver BLDC motors are usually preferred for AGV and AMR systems because they need higher power, encoder feedback, braking, communication, and robust thermal management.

Can built-in driver BLDC motors be customized?

Yes. Built-in driver motors can be customized, but customization may be more limited than external driver solutions. Control signals, voltage, speed range, protection logic, and wiring should be confirmed early.

What information should I provide for a BLDC motor inquiry?

You should provide application, voltage, power, speed, torque or load, external or built-in driver preference, control signal, feedback requirement, duty cycle, environment, and estimated quantity.

Can Modar Motor help select external or built-in driver solutions?

Yes. Modar Motor can help OEM buyers evaluate the application and recommend external driver or built-in driver BLDC motor solutions based on power, control method, space, thermal condition, and production requirements.

Conclusion: Choose the BLDC Driver Solution Based on the Whole System

The choice between an external driver BLDC motor and a built-in driver BLDC motor should be based on the complete equipment design, not only convenience or price.

External driver BLDC motors are usually better for high-power applications, continuous-duty operation, advanced control, industrial systems, and projects requiring easier maintenance. Built-in driver BLDC motors are better for compact equipment, simple speed control, clean wiring, fast assembly, and standardized mass production.

For OEM buyers, the most important step is to define the real application requirements. Voltage, power, speed, torque, duty cycle, control signal, feedback method, heat dissipation, installation space, protection functions, and maintenance strategy should all be considered before selecting the motor solution.

If you are developing a BLDC motor product for HVAC, pumps, automation, robotics, medical devices, or smart commercial equipment, Modar Motor can support customized brushless motor solutions with external or built-in driver options. With practical engineering communication and OEM/ODM customization support, Modar Motor helps buyers choose a motor solution that fits the final product, not just a catalog specification.
