Introduction: Why Choosing the Right Gearbox Is Critical for OEM Motor Applications

In modern mechanical systems, electric motors are everywhere. They drive fans, pumps, conveyors, robots, medical equipment, automation systems, smart devices, and many other products.

However, in many applications, a standard motor cannot directly provide the required mechanical performance.

A typical DC motor or BLDC motor can achieve high rotational speed, but many machines require:

• Lower output speed

• Higher torque

• Better load control

• More precise movement

• Compact mechanical design

• Longer operating life

This is where a gearbox becomes essential.

A gearbox transforms the high-speed output of a motor into a controlled mechanical output suitable for the application. By reducing speed and increasing torque, the gearbox allows a relatively small motor to drive a much larger load.

A motor combined with a gearbox is called a gear motor.

Today, gear motors are widely used in:

• Industrial automation equipment

• Robotics and robotic arms

• AGV and AMR systems

• Medical equipment

• HVAC systems

• Electric actuators

• Smart home devices

• Pumps and valves

• Packaging machines

• Commercial equipment

However, not all gearboxes are the same.

Different gearbox designs have different characteristics:

• Planetary gearbox → high torque density and precision

• Worm gearbox → high reduction ratio and compact design

• Spur gearbox → cost-effective and simple structure

• Helical gearbox → smooth and quiet operation

• Bevel gearbox → right-angle transmission

• Harmonic gearbox → extremely high precision motion

For OEM engineers and purchasing teams, selecting the wrong gearbox can create serious problems:

• Insufficient output torque

• Excessive noise

• High power consumption

• Overheating

• Short service life

• Poor positioning accuracy

• Increased maintenance cost

Therefore, gearbox selection should not only consider price. It should consider the complete application requirement.

This guide explains different gearbox types, their advantages and disadvantages, typical applications, and how OEM buyers can choose the right gearbox solution for their gear motor projects.

What Is a Gearbox and Why Does a Motor Need One?

Basic Definition of a Gearbox

A gearbox is a mechanical transmission system that uses gears to modify the speed, torque, and direction of motor output.

The basic relationship is:

• Higher reduction ratio → Lower speed + Higher torque

• Lower reduction ratio → Higher speed + Lower torque

For example:

A BLDC motor may operate at:

• 3000 RPM

• 5000 RPM

• 10000 RPM

But the actual machine may require:

• 100 RPM

• 300 RPM

• 500 RPM

A gearbox converts the motor speed into the required output speed.

Main Functions of a Gearbox in a Motor System

Increasing Output Torque

The most important function of a gearbox is torque amplification.

Many applications require strong starting force or the ability to move heavy loads.

Examples:

AGV Drive Systems

An AGV may need to move hundreds of kilograms of material. A small motor alone cannot provide enough torque.

A gearbox increases output torque while keeping the motor size compact.

Robotic Applications

Robot joints require:

• High torque

• Compact structure

• Smooth movement

A planetary gearbox is commonly used because it provides high torque density.

Electric Actuators

Actuators require controlled force rather than high speed.

A gearbox converts motor rotation into strong mechanical movement.

Reducing Motor Speed

Electric motors naturally operate at high speed because high RPM improves motor efficiency and power density.

However, machines often require slower movement.

Examples:

• Conveyor systems

• Medical adjustment systems

• Electric doors

• Valves

The gearbox provides speed reduction.

Improving Load Matching

A motor and gearbox combination allows engineers to match:

• Motor output characteristics

• Mechanical load requirements

• Working cycle

• Speed profile

This improves overall system efficiency.

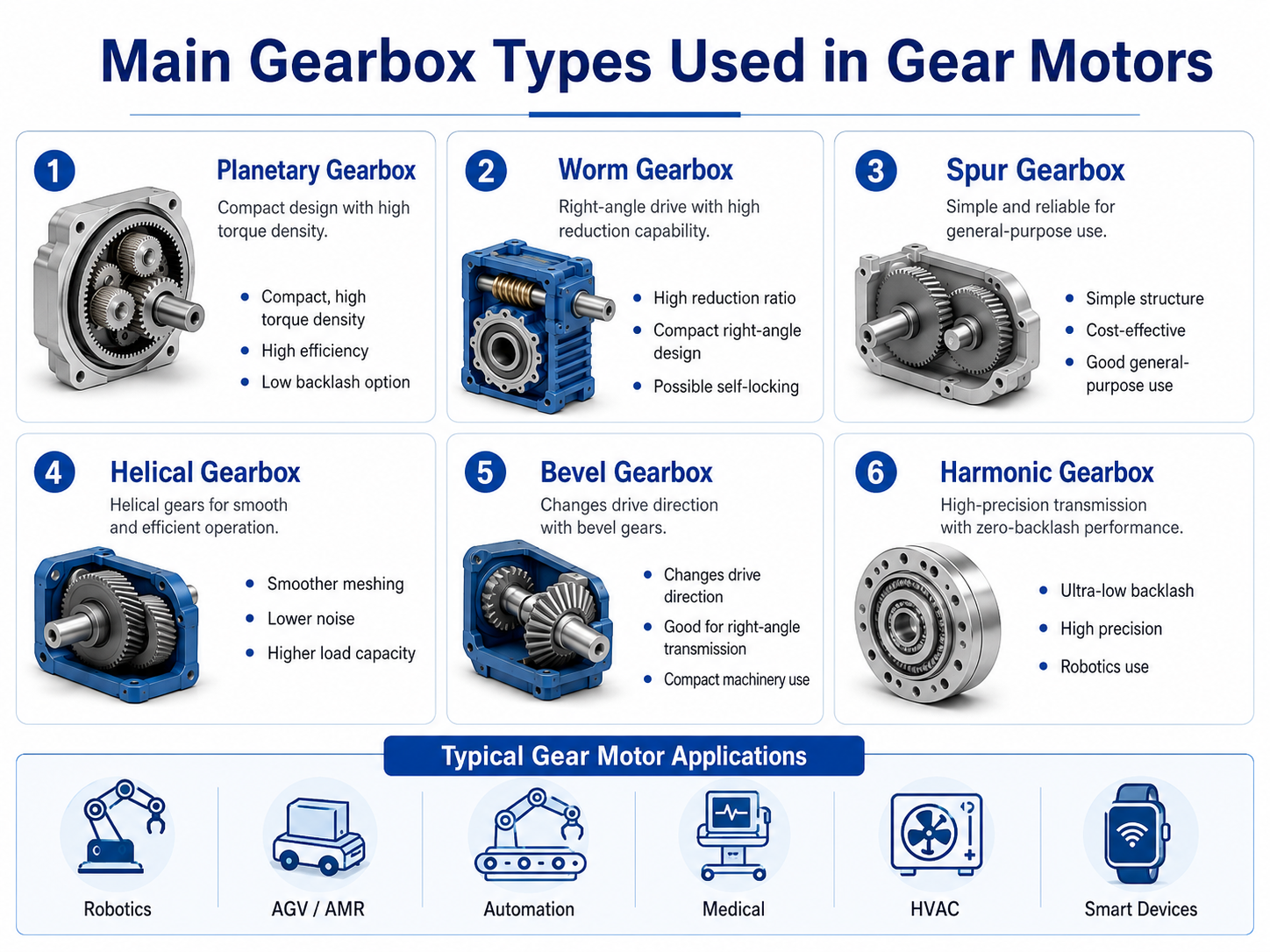

Overview of Main Gearbox Types

The most common gearbox types used with DC motors and BLDC motors include:

1. Planetary gearbox

2. Worm gearbox

3. Spur gearbox

4. Helical gearbox

5. Bevel gearbox

6. Harmonic gearbox

Among these, planetary, worm, and spur gearboxes are the most common for general OEM gear motor applications.

Planetary Gearbox: High Torque and Precision Solution

What Is a Planetary Gearbox?

A planetary gearbox is one of the most advanced compact gearbox designs.

Its structure includes:

• Sun gear

• Planet gears

• Planet carrier

• Ring gear

The sun gear is located at the center.

Multiple planet gears rotate around the sun gear while engaging with the internal ring gear.

This structure distributes the load across multiple gears.

Advantages of Planetary Gearboxes

High Torque Density

The biggest advantage of planetary gearboxes is their ability to provide very high torque in a compact size.

Because several planet gears share the load:

• Gear stress is reduced

• Torque capacity increases

• Mechanical durability improves

This makes planetary gear motors ideal where space is limited but torque requirements are high.

High Efficiency

Compared with worm gearboxes, planetary gearboxes usually provide higher transmission efficiency.

Higher efficiency means:

• Less energy loss

• Lower heat generation

• Better battery life

This is especially important for:

• AGV

• AMR

• Battery-powered equipment

• Portable medical devices

Compact Mechanical Design

A planetary gearbox can achieve large reduction ratios without creating a large housing.

For example:

A small BLDC motor combined with a planetary gearbox can replace a much larger traditional motor solution.

Excellent Load Distribution

Because multiple gears share the load, planetary gearboxes can handle high torque and shock loads.

This improves reliability in demanding applications.

Low Backlash Options

Precision planetary gearboxes can achieve very low backlash.

This is important for:

• Robotics

• Servo systems

• Precision positioning equipment

Disadvantages of Planetary Gearboxes

Higher Cost

Planetary gearboxes require:

• Precision machining

• Accurate assembly

• Higher manufacturing requirements

Therefore, they are usually more expensive than spur gearboxes.

More Complex Manufacturing

The quality of:

• Gear machining

• Carrier design

• Bearing selection

• Lubrication

directly affects performance.

Typical Applications of Planetary Gear Motors

Planetary gear motors are widely used in:

Robotics

Because robots require:

• High torque

• Precision

• Compact size

AGV / AMR

Used for:

• Wheel drive systems

• Navigation systems

• Autonomous transport equipment

Industrial Automation

Applications include:

• Servo mechanisms

• Automated machines

• Assembly equipment

Medical Equipment

Used in:

• Adjustable beds

• Medical pumps

• Robotic medical systems

Worm Gearbox: Compact and High Reduction Solution

What Is a Worm Gearbox?

A worm gearbox uses:

• Worm screw

• Worm wheel

The worm rotates and drives the wheel to achieve speed reduction.

Advantages of Worm Gearboxes

High Reduction Ratio

A worm gearbox can achieve a very large reduction ratio in a compact structure.

This makes it suitable for low-speed applications.

Compact Design

Worm gearboxes are often used where installation space is limited.

Self-Locking Capability

Some worm gearboxes can prevent reverse movement.

Applications:

• Lifting systems

• Electric doors

• Adjustable mechanisms

Low Noise

Because worm gears operate with sliding contact, they often produce lower noise.

Disadvantages of Worm Gearboxes

Lower Efficiency

The sliding friction between worm and wheel creates energy loss.

Compared with planetary gearboxes:

• Efficiency is lower

• Heat generation is higher

Not Ideal for High-Speed Continuous Operation

For applications requiring:

• High efficiency

• Long continuous operation

other gearbox types may be better.

Typical Applications of Worm Gear Motors

• Electric gates

• Actuators

• Adjustable furniture

• Medical equipment

• Small lifting systems

• Valve control systems

Spur Gearbox: Simple and Cost-Effective Solution

What Is a Spur Gearbox?

A spur gearbox uses straight-cut gears.

It is one of the simplest gearbox structures.

Advantages of Spur Gearboxes

Lower Cost

Because of simple manufacturing:

• Production cost is lower

• Maintenance is easier

Good Efficiency

Direct gear engagement provides good transmission efficiency.

Easy Customization

OEM manufacturers can customize:

• Gear ratio

• Shaft design

• Mounting

• Motor combination

Disadvantages of Spur Gearboxes

Higher Noise

Straight teeth create more impact during engagement.

Lower Torque Density

Compared with planetary gearboxes:

• Larger size may be required

• Torque capability is lower

Typical Applications

• Small appliances

• Electric locks

• Small automation equipment

• Smart devices

• Consumer products

Helical Gearbox: Smooth and Quiet Transmission

What Is a Helical Gearbox?

Helical gears use angled teeth instead of straight teeth.

This creates smoother gear engagement.

Advantages

• Lower noise

• Higher load capacity

• Smooth operation

Disadvantages

• Higher manufacturing cost

• More complex structure

Applications

Common in:

• Industrial machines

• HVAC systems

• Heavy automation

Bevel Gearbox: Right-Angle Transmission Solution

What Is a Bevel Gearbox?

A bevel gearbox changes the direction of power transmission, usually by 90 degrees.

Applications

Used in:

• Right-angle drives

• Compact machinery

• Robotics systems

Harmonic Gearbox: Ultra Precision Solution

What Is a Harmonic Gearbox?

Harmonic gearboxes provide extremely high precision with very low backlash.

Advantages

• Very low backlash

• High accuracy

• Compact structure

Applications

Mainly used in:

• Advanced robotics

• Aerospace

• Precision automation

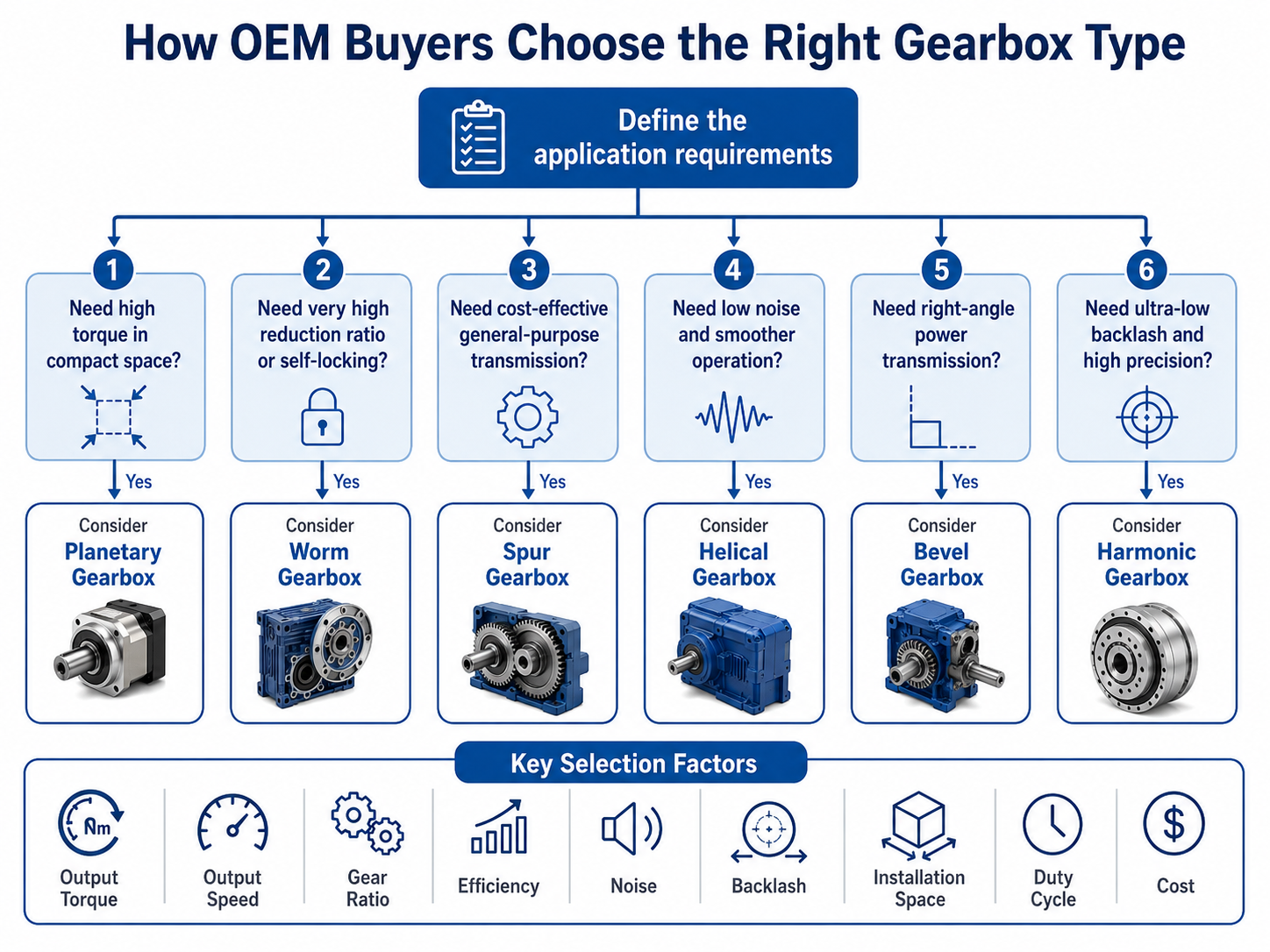

How OEM Buyers Choose the Right Gearbox

1. Define Torque Requirement

Torque is the first parameter.

Ask:

• What load will the motor drive?

• What starting torque is required?

• Is there shock loading?

2. Determine Speed Requirement

Confirm:

• Motor speed

• Required output RPM

• Reduction ratio

3. Consider Working Environment

Important factors:

• Temperature

• Dust

• Humidity

• Vibration

• Continuous operation

4. Consider Noise Requirement

For:

• Medical equipment

• Indoor products

• Smart devices

low-noise gearbox designs are preferred.

5. Consider Lifetime Requirement

Different gearboxes have different lifetime characteristics.

OEM buyers should evaluate:

• Operating hours

• Load cycle

• Maintenance requirement

How Modar Motor Supports Custom Gear Motor Solutions

Modar Motor provides customized motor and gearbox solutions for OEM customers.

Available solutions include:

• Brushed DC gear motors

• BLDC gear motors

• Planetary gear motors

• Spur gear motors

• Customized gearbox assemblies

Our engineering team supports customers with:

• Application analysis

• Motor selection

• Gearbox matching

• Torque calculation

• Prototype development

• Testing

• Mass production

Applications include:

• Robotics

• Industrial automation

• HVAC

• Medical equipment

• Pumps

• Smart devices

• AGV/AMR systems

Gearbox Selection FAQ

Which gearbox provides the highest torque?

Planetary gearboxes generally provide the highest torque density.

Which gearbox is best for robotics?

Planetary and harmonic gearboxes are commonly used because of precision and torque capability.

Which gearbox is cheapest?

Spur gearboxes are usually the most cost-effective.

Which gearbox is best for low noise?

Worm and helical gearboxes usually provide quieter operation.

Can BLDC motors use planetary gearboxes?

Yes. BLDC motors combined with planetary gearboxes are widely used in automation and robotics.

How do I select a gearbox ratio?

The correct ratio depends on:

• Output speed

• Torque requirement

• Load condition

• Working cycle

Can Modar Motor customize gear motors?

Yes. Modar Motor supports customized gear motor development according to voltage, speed, torque, gearbox type, shaft design, and application requirements.

Conclusion: Selecting the Right Gearbox Creates Better Motion Performance

A gearbox is not simply a speed reducer. It is a critical component that determines how efficiently and reliably a motor performs in a real application.

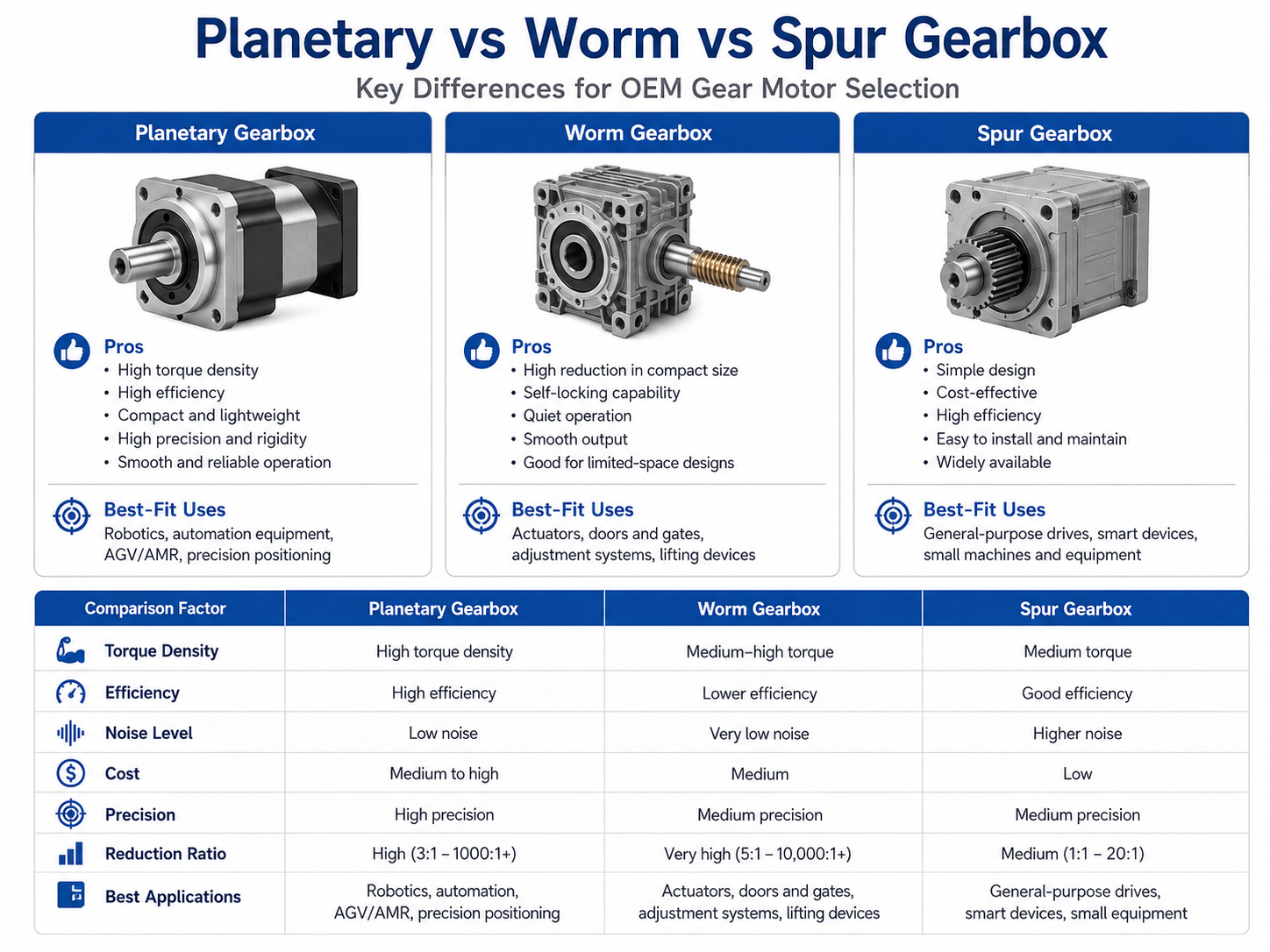

Planetary gearboxes provide high torque density and precision.

Worm gearboxes provide compact structure and high reduction capability.

Spur gearboxes provide cost efficiency and simple design.

Helical, bevel, and harmonic gearboxes provide specialized solutions for specific industries.

For OEM buyers, the best gearbox choice depends on the complete system requirement, including torque, speed, efficiency, noise, space, lifetime, and cost.

With customized motor and gearbox development capability, Modar Motor helps customers select the right gear motor solution for industrial, medical, automation, HVAC, and smart equipment applications.
