The Difference Between Traditional Brushed Motors and Planetary Gearbox Motors

When people compare traditional brushed motors and planetary gearbox motors, they often think they are comparing two completely different motor technologies. But here is the first important point: a traditional brushed motor is a type of electric motor, while a planetary gearbox motor is usually a motor combined with a planetary gear reducer.

In simple words, one describes how the motor creates rotation, and the other describes how that rotation is adjusted for torque and speed.

Think of a brushed motor as the engine of a small machine, while a planetary gearbox is like the transmission system in a car. The motor produces motion, and the gearbox reshapes that motion into something more useful.

This difference matters because choosing the wrong motor can lead to poor torque, unstable speed, overheating, short service life, or unnecessary cost. Whether you are designing electric tools, automation equipment, medical devices, smart locks, robotics, or small industrial machines, understanding the difference between these two solutions can save you a lot of trouble later.

What Is a Traditional Brushed Motor?

A traditional brushed motor, often called a brushed DC motor, is one of the most common and widely used electric motors. It converts electrical energy into mechanical rotation through the interaction between magnetic fields and current-carrying coils.

It is called “brushed” because it uses carbon brushes to transfer electrical current to the rotating part of the motor. Brushed motors are popular because they are simple, affordable, easy to control, and suitable for many basic applications.

If you apply voltage, the motor starts spinning. Increase the voltage, and the speed usually increases. Reverse the polarity, and the motor rotates in the opposite direction. That makes brushed motors very convenient for products where simple speed and direction control are enough.

How a Brushed Motor Works

A brushed motor works like a small electromagnetic dance. Inside the motor, current flows through the armature windings. This current creates a magnetic field. The magnetic field interacts with the permanent magnets or field magnets inside the motor housing, creating force and rotation.

As the rotor spins, the commutator and brushes continuously switch the current direction in the windings. This keeps the rotor turning in the same direction. Without this switching action, the motor would stop after only a partial turn.

The brushes and commutator act like a mechanical switching system. It is simple, effective, and proven. However, because the brushes physically touch the commutator, friction and wear are unavoidable.

Main Components of a Brushed DC Motor

A traditional brushed motor usually includes a stator, rotor, armature windings, commutator, brushes, shaft, bearings, and housing.

Each part has a clear job. The stator provides the magnetic field. The rotor carries the windings and rotates. The commutator switches current direction. The brushes transfer power from the external circuit to the rotating commutator. The shaft outputs mechanical power to the load. The bearings support smooth rotation. The housing protects everything and helps maintain alignment.

Because the structure is relatively simple, brushed motors are easy to manufacture and repair compared with many advanced motor systems.

Brushes and Commutator

The brushes and commutator are the heart of a brushed motor’s mechanical switching system. The brushes are usually made from carbon or graphite-based material. They press against the commutator and allow current to flow into the rotor windings.

The commutator is divided into segments, and as it rotates, the brushes contact different segments. This changes the current direction at the right time.

The benefit is simple motor control. The downside is wear. Over time, brushes become shorter, carbon dust may build up, and electrical sparks may appear during operation. This is one reason brushed motors normally require more maintenance than brushless motors or sealed geared motor systems.

Armature, Magnets, and Shaft

The armature is the rotating part of the brushed motor. It carries the windings that generate electromagnetic force. The magnets create the fixed magnetic field. The shaft is connected to the rotor and delivers rotation to the outside machine.

In a direct-drive brushed motor, this shaft usually spins at relatively high speed but provides limited torque. That is perfectly fine for fans, toys, small pumps, and simple tools. But when the application needs low speed and high torque, a direct brushed motor may struggle unless it is oversized or paired with a gearbox.

What Is a Planetary Gearbox Motor?

A planetary gearbox motor is usually an electric motor integrated with a planetary gear reducer. The motor can be a brushed DC motor, brushless DC motor, stepper motor, or another motor type.

The gearbox changes the output characteristics. It reduces speed and increases torque. This makes the motor more powerful at the output shaft, even if the motor itself is compact.

Planetary gearbox motors are widely used in applications where space is limited but torque demand is high. They are common in robotics, electric screwdrivers, medical equipment, automation systems, smart home devices, valve actuators, automotive mechanisms, and precision motion systems.

Understanding the Motor + Gearbox Combination

The easiest way to understand a planetary gearbox motor is to imagine riding a bicycle uphill.

If you use a high gear, you may move fast on flat roads, but climbing becomes difficult. Switch to a lower gear, and your speed drops, but your pedaling force becomes much more effective.

A planetary gearbox does something similar. It reduces the high-speed rotation of the motor and converts it into stronger, slower output rotation. This is why planetary gear motors are ideal when the load is heavy or when controlled movement is required.

The motor provides speed. The gearbox provides mechanical advantage. Together, they create a balanced drive solution.

How a Planetary Gearbox Works

A planetary gearbox gets its name from the way the gears move. The design looks like a small solar system.

There is a central sun gear, several planet gears rotating around it, an outer ring gear, and a planet carrier. When the motor drives the sun gear, the planet gears rotate and distribute load across multiple contact points.

This structure allows the gearbox to handle higher torque in a compact size. Compared with simple spur gear reducers, planetary gearboxes often offer better torque density, smoother transmission, and stronger output stability.

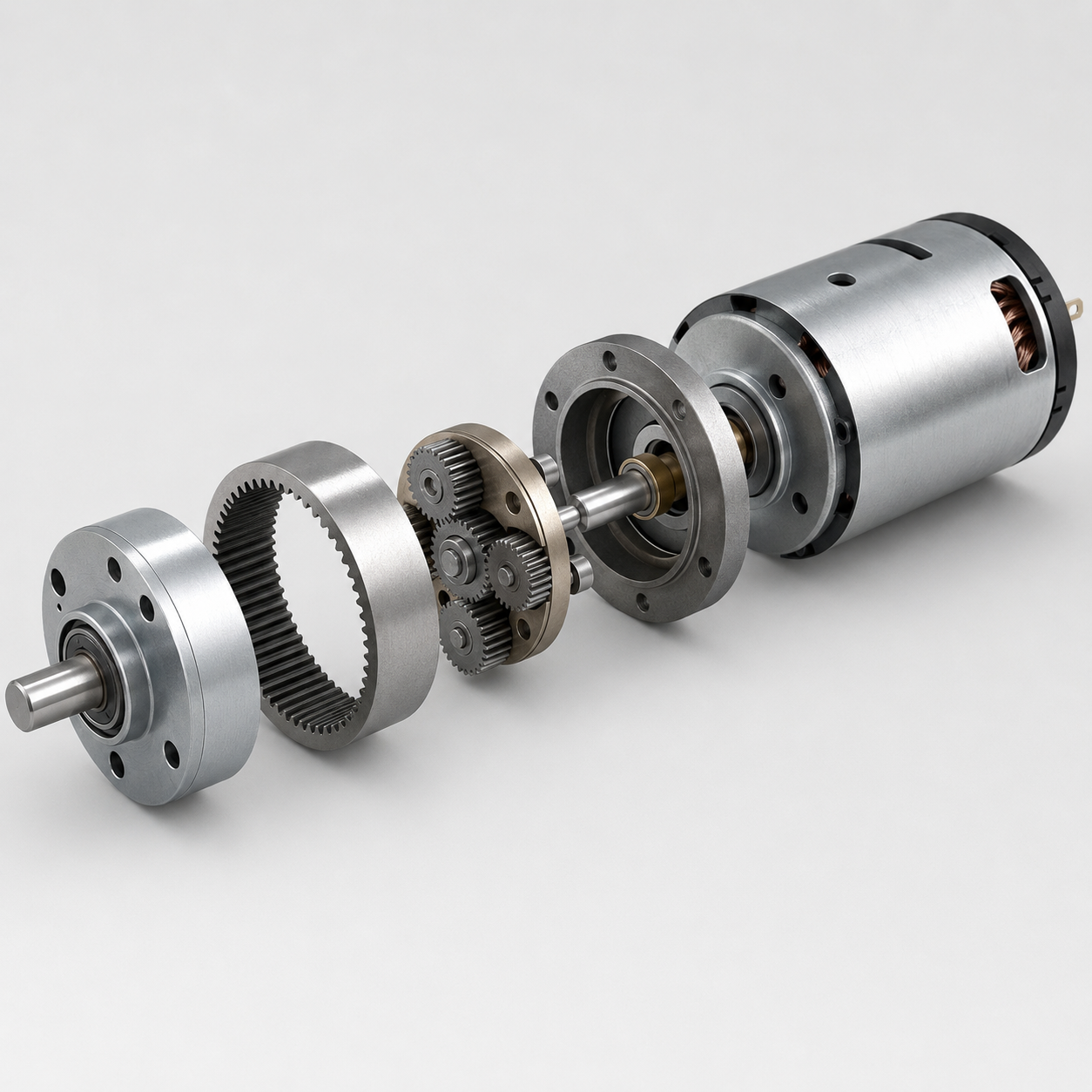

Sun Gear, Planet Gears, Ring Gear, and Carrier

The sun gear sits in the center and receives power from the motor. The planet gears surround the sun gear and mesh with both the sun gear and the ring gear. The ring gear is the outer gear with internal teeth. The carrier holds the planet gears and usually acts as the output part.

Because several planet gears share the load, planetary gearboxes can transmit more torque without becoming very large. That is why engineers often choose planetary gearbox motors when they need compact size, high torque, and reliable power transmission.

Key Difference 1: Speed Output

One of the biggest differences between a traditional brushed motor and a planetary gearbox motor is output speed.

A traditional brushed motor usually runs at relatively high speed. Depending on its design, voltage, and load, it may rotate at thousands or even tens of thousands of revolutions per minute. That can be useful for fans, small pumps, toy cars, or rotary tools.

However, many machines do not need very high speed. They need controlled, slower movement. A planetary gearbox motor reduces the speed through gear ratios.

For example, if a motor spins at 6,000 rpm and the gearbox ratio is 30:1, the output speed may become about 200 rpm before efficiency losses. This slower output is much easier to use for lifting, turning, pushing, locking, or positioning.

Key Difference 2: Torque Performance

Torque is where planetary gearbox motors really shine.

A direct brushed motor may spin fast, but its output torque is limited by the motor size and current capacity. If you try to force it to move a heavy load, the motor may slow down, draw too much current, heat up, or stall.

A planetary gearbox motor increases output torque by reducing speed. The higher the gear ratio, the more torque multiplication you get, although some energy is lost through friction.

This makes planetary gearbox motors much better for applications such as electric grippers, lifting mechanisms, adjustable seats, medical beds, door locks, and small automation actuators.

In simple terms, a brushed motor is like a fast runner, while a planetary gearbox motor is like a strong climber.

Key Difference 3: Size and Power Density

A traditional brushed motor can be compact, but if you need high torque directly from the shaft, you may need a larger motor. This increases weight, cost, and installation space.

A planetary gearbox motor can often achieve higher output torque from a smaller motor body because the gearbox multiplies torque mechanically. This is called high power density or high torque density.

In tight spaces, this matters a lot. Think about a robotic joint, a smart lock, or a medical instrument. There may not be enough room for a large motor. A compact planetary gearbox motor can fit into the design while still delivering enough force.

That is why planetary geared motors are common in modern compact equipment.

Key Difference 4: Efficiency and Energy Use

Efficiency depends on the motor design, gearbox quality, load condition, bearings, lubrication, and operating speed.

A simple brushed motor without a gearbox may have fewer mechanical transmission losses because the output comes directly from the motor shaft. However, if the motor is forced to operate under heavy load at low speed, efficiency can drop quickly.

A planetary gearbox adds gear friction, so it is not loss-free. But it can help the motor work closer to a more suitable operating range.

In many real applications, a properly selected planetary gearbox motor can use energy more effectively because the motor does not need to fight the load directly. The key is matching the gear ratio, torque, voltage, and duty cycle correctly.

Key Difference 5: Noise, Vibration, and Smoothness

Traditional brushed motors can produce electrical and mechanical noise. Brush contact, commutation sparks, bearing quality, rotor balance, and load changes all affect noise and vibration.

Planetary gearbox motors also generate mechanical noise from gear meshing. A high-quality planetary gearbox can run smoothly, but a low-quality one may sound rough, especially at high speed or under heavy load.

In general, if the application needs smooth low-speed movement, a planetary gearbox motor often performs better than a direct high-speed brushed motor.

However, if low noise is extremely important, engineers must carefully choose gear material, lubrication, precision grade, motor type, and assembly quality.

Key Difference 6: Service Life and Maintenance

Traditional brushed motors have a natural wear point: the brushes. As the motor runs, the brushes rub against the commutator. Over time, they wear down. This can reduce performance, create noise, cause unstable contact, and eventually lead to motor failure.

Planetary gearbox motors may also require attention, especially if the gearbox is heavily loaded or poorly lubricated. Gear wear, bearing wear, and backlash can become issues.

However, a well-designed planetary gearbox motor can offer strong reliability when used within rated torque and speed limits. If the planetary gearbox motor uses a brushed motor inside, brush life still matters. If it uses a brushless motor, the service life can be much longer.

Key Difference 7: Precision and Control

Traditional brushed motors are easy to control for basic speed and direction, but they are not naturally precise. Without feedback devices such as encoders, they cannot accurately know position or speed under changing load.

Planetary gearbox motors are often better for controlled motion because the gearbox reduces speed and increases output resolution. When paired with an encoder, they can provide much better positioning and repeatability.

This is important in robotics, laboratory equipment, medical devices, and automation systems. However, gearboxes may introduce backlash, which means a small amount of free movement between gear teeth. For high-precision applications, low-backlash planetary gearboxes are preferred.

Traditional Brushed Motors: Main Advantages

Traditional brushed motors remain popular for good reasons.

First, they are cost-effective. Their structure is mature, and manufacturing processes are well established.

Second, they are simple to drive. You do not need a complex controller for basic operation.

Third, they provide good starting torque for many light-duty applications.

Fourth, they are widely available in many sizes, voltages, and power ranges.

For products where cost matters more than long life or high precision, brushed motors can be an excellent choice. They are especially useful when the load is light, speed is high, and the design needs to stay simple.

Traditional Brushed Motors: Main Limitations

The biggest limitation of brushed motors is brush wear. Because brushes and commutators physically contact each other, maintenance and lifetime become concerns.

Brushed motors may also create electrical noise, sparks, and electromagnetic interference. This can be a problem in sensitive electronic devices.

Another limitation is reduced efficiency compared with some brushless designs. Heat can also become an issue when the motor runs under heavy load for a long time.

Finally, direct brushed motors may not provide enough torque at low speed without becoming larger. So while brushed motors are simple and affordable, they are not always the best choice for demanding applications.

Planetary Gearbox Motors: Main Advantages

Planetary gearbox motors offer several strong advantages.

The first is high torque output in a compact package. The second is speed reduction, which makes movement easier to control. The third is good load distribution because multiple planet gears share the torque.

The fourth is better suitability for heavy-load and low-speed applications. The fifth is flexible customization. Engineers can choose different gear ratios, motor types, shaft designs, voltage ratings, encoders, and mounting structures.

This makes planetary gearbox motors very versatile. If your product needs strong output force but has limited space, a planetary gearbox motor is often a smart solution.

Planetary Gearbox Motors: Main Limitations

Planetary gearbox motors are not perfect.

They are usually more expensive than simple brushed motors because they include more mechanical parts. They may also be slightly longer or heavier because of the gearbox.

Gear noise can occur, especially if the gearbox is low quality or poorly matched to the motor. Backlash can affect positioning accuracy if the application requires very precise movement.

Also, if the gearbox is overloaded, gears may wear or fail. That is why engineers must avoid choosing only by stall torque or no-load speed. Real working torque, duty cycle, shock load, operating temperature, and required lifetime all matter.

Common Applications of Traditional Brushed Motors

Traditional brushed motors are widely used in products that need simple rotation and moderate cost.

Common examples include electric toys, small fans, mini pumps, handheld devices, basic automotive mechanisms, simple household appliances, low-cost power tools, and educational equipment.

They are also used in applications where the motor does not run continuously for long hours. For short-duty, simple-control products, a brushed motor can still be the most practical option.

Why overcomplicate a design if a simple motor can do the job well? In many cost-sensitive products, brushed motors remain a reliable and economical choice.

Common Applications of Planetary Gearbox Motors

Planetary gearbox motors are common in applications that need low speed, high torque, compact size, and stable output.

You can find them in robotics, electric grippers, smart locks, electric curtains, medical beds, infusion pumps, valve actuators, vending machines, automatic doors, industrial automation equipment, testing instruments, and automotive adjustment systems.

They are also used in electric screwdrivers and precision tools because the gearbox provides the torque needed for tightening or driving loads.

In short, when the machine needs controlled strength instead of raw speed, a planetary gearbox motor becomes much more attractive.

How to Choose Between a Brushed Motor and a Planetary Gearbox Motor

Choosing between a traditional brushed motor and a planetary gearbox motor is not about which one is “better” in every situation. It is about which one fits your application.

Start with the load. Does the system need high speed or high torque?

Then look at space. Can the design accept a gearbox length?

Next, consider control. Do you need simple on/off rotation, speed control, or accurate positioning?

After that, check duty cycle. Will the motor run occasionally or continuously?

Finally, review cost and lifetime requirements. A cheap motor that fails early may become expensive in the long run.

Choose Based on Speed

If your application needs high-speed rotation with light load, a traditional brushed motor may be enough. For example, a small fan or toy motor may not need a gearbox.

But if your system needs slower, controlled movement, a planetary gearbox motor is usually more suitable. The gearbox reduces speed to a useful range and makes the output easier to manage.

Choose Based on Torque

If the load requires strong turning force, choose a planetary gearbox motor. Direct brushed motors can provide torque, but only within their design limits.

Once the load becomes heavy, the motor may overheat or stall. A gearbox helps multiply torque and protect the motor from working in an unsuitable condition.

Choose Based on Space

Space can change the decision quickly. A larger brushed motor may deliver more torque, but it may not fit.

A smaller motor with a planetary gearbox may provide the required output in a more compact diameter. However, the gearbox adds length, so both diameter and total length should be checked carefully.

Choose Based on Cost

If the product is highly cost-sensitive and the performance requirement is simple, a traditional brushed motor may be the better option.

Planetary gearbox motors cost more because of the gear system. But if the gearbox allows a smaller motor, better performance, or longer product life, the total value may be higher.

Choose Based on Lifetime

For short-duty applications, brushed motors can work well. For long-life or high-duty applications, you must consider brush wear.

If you need a planetary gearbox motor with long service life, consider pairing the gearbox with a brushless motor instead of a brushed motor. This can improve durability and reduce maintenance.

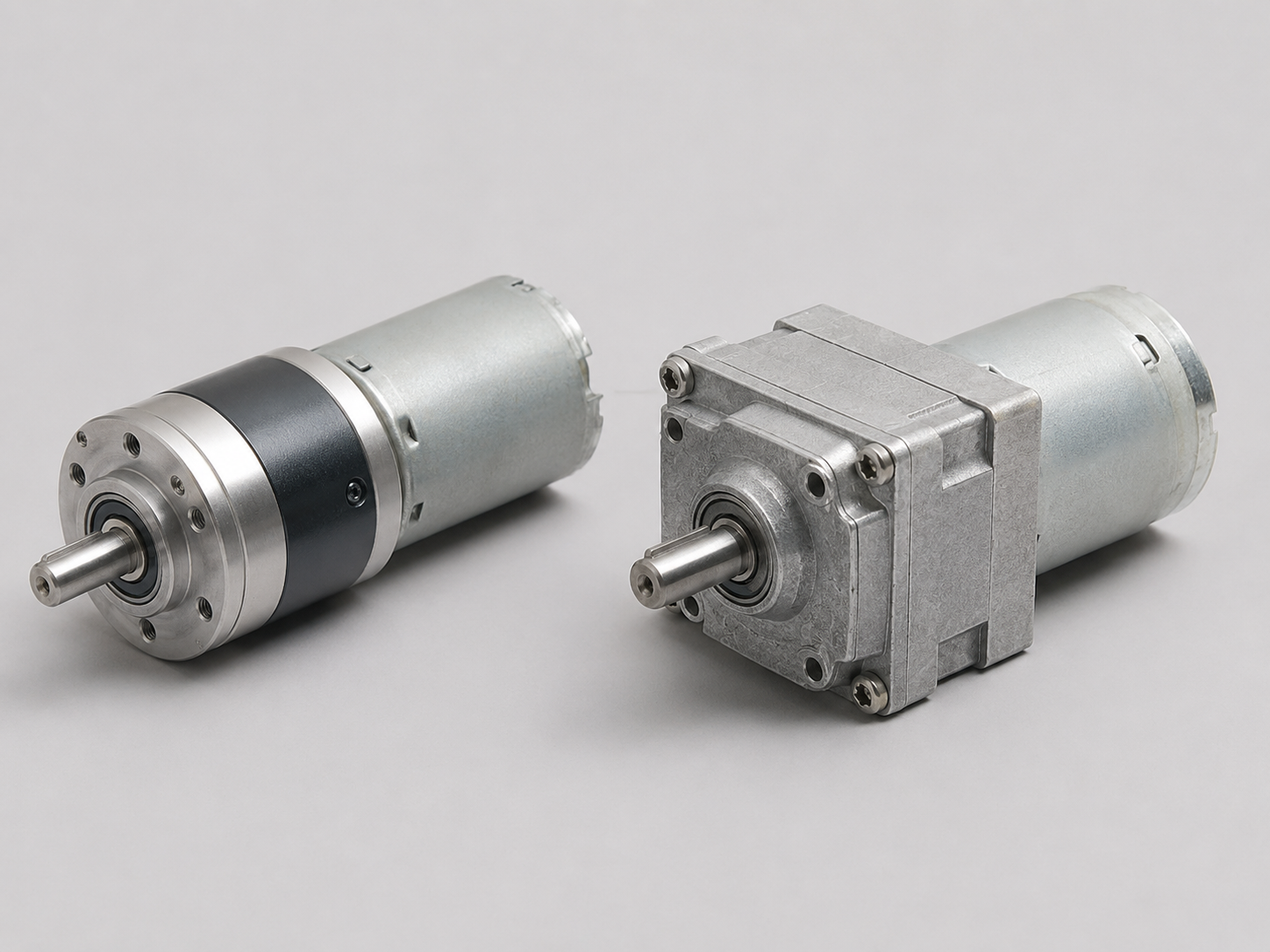

Can a Brushed Motor Also Use a Planetary Gearbox?

Yes, absolutely. This is one of the most important points.

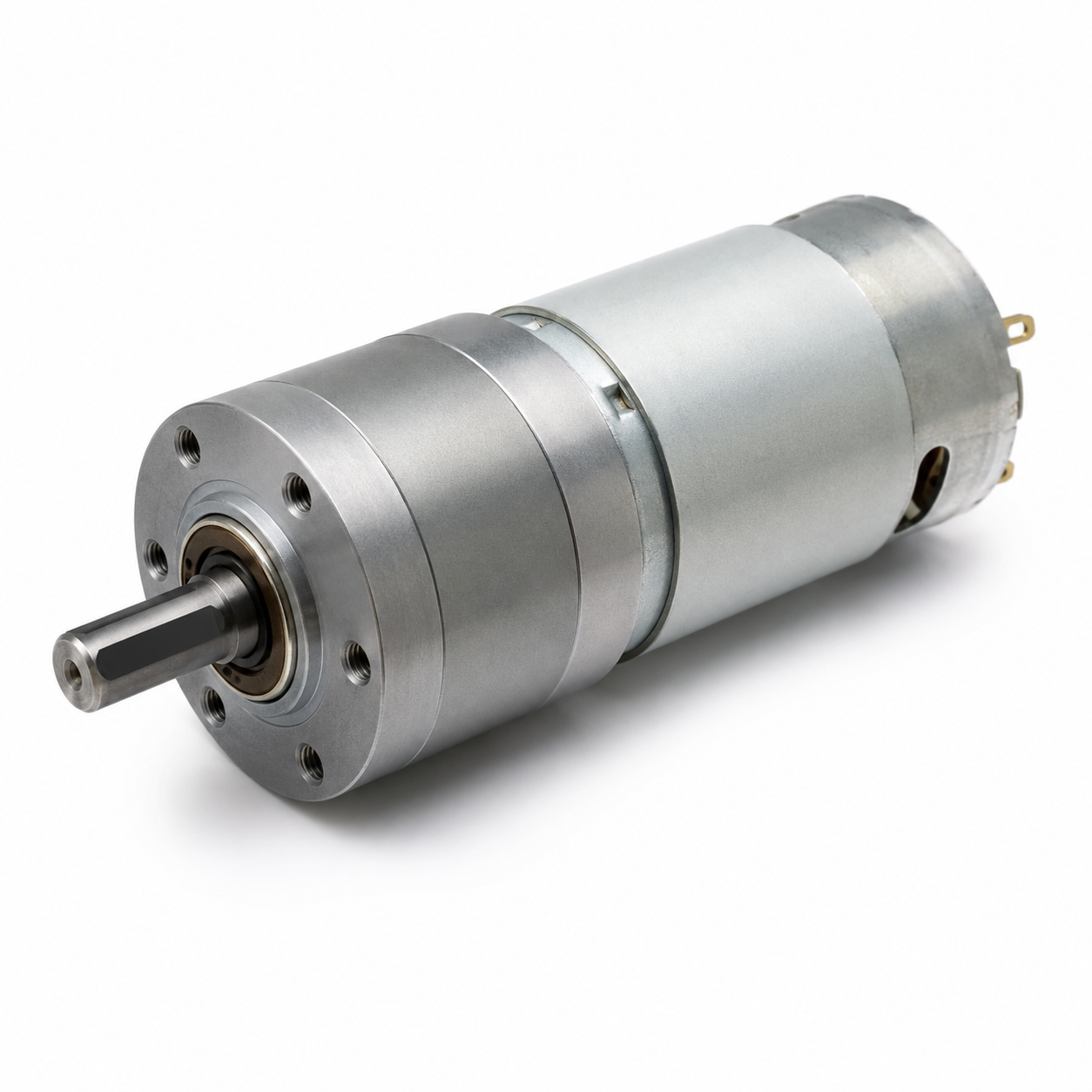

A brushed planetary gear motor is a very common product. It combines a brushed DC motor with a planetary gearbox.

So the comparison is not always “brushed motor versus planetary gearbox motor.” Sometimes the real choice is “direct-drive brushed motor versus brushed motor with planetary gearbox.”

The gearbox does not replace the motor. It changes how the motor’s power is delivered. If you already like the low cost and simple control of a brushed motor but need more torque and lower speed, adding a planetary gearbox can be a practical solution.

Final Comparison Between Traditional Brushed Motors and Planetary Gearbox Motors

Traditional brushed motors are simple, fast, affordable, and easy to control. Planetary gearbox motors are stronger at the output, slower, more compact for high-torque tasks, and better for controlled movement.

A brushed motor is often best for light-load, high-speed, cost-sensitive applications.

A planetary gearbox motor is better for low-speed, high-torque, compact, and precision-oriented applications.

If your machine only needs to spin, a brushed motor may be enough. If your machine needs to push, lift, lock, grip, rotate slowly, or move with force, a planetary gearbox motor is usually the better choice.

Conclusion

The difference between traditional brushed motors and planetary gearbox motors comes down to function.

A brushed motor creates rotation through brushes, a commutator, windings, and magnetic force. A planetary gearbox motor uses a motor plus a gear reducer to reshape that rotation into lower speed and higher torque.

Neither option is automatically better. A traditional brushed motor is simple, economical, and useful for many light-duty products. A planetary gearbox motor is more suitable when the application needs strength, control, compact size, and stable low-speed output.

The best choice depends on torque, speed, space, cost, noise, lifetime, and control requirements.

In engineering, the right motor is not the fanciest one. It is the one that fits the job like a key fits a lock.

FAQs About Brushed Motors and Planetary Gearbox Motors

1. Is a planetary gearbox motor the same as a brushed motor?

No. A brushed motor is a motor type, while a planetary gearbox motor is usually a motor combined with a planetary gear reducer. The motor inside can be brushed or brushless.

2. Which has higher torque, a brushed motor or a planetary gearbox motor?

A planetary gearbox motor usually has higher output torque because the gearbox reduces speed and multiplies torque.

3. Are brushed motors cheaper than planetary gearbox motors?

In most cases, yes. A basic brushed motor is usually cheaper because it has fewer parts. A planetary gearbox motor costs more due to the gear system.

4. Can I use a brushed motor with a planetary gearbox?

Yes. Brushed planetary gear motors are very common and useful when simple control, lower speed, and higher torque are needed.

5. Which motor is better for robotics?

For many robotic applications, planetary gearbox motors are better because they provide higher torque and better low-speed control. For advanced robots, brushless planetary gear motors may be preferred.

6. Which motor lasts longer?

A simple brushed motor has brush wear, so its life is limited by brush and commutator condition. A planetary gearbox motor’s life depends on both the motor and gearbox. If it uses a brushless motor, it can last much longer.

7. Does a planetary gearbox reduce speed?

Yes. The main job of a planetary gearbox is to reduce speed and increase torque. Different gear ratios create different output speeds and torque levels.

8. Which one should I choose for a small device?

If the device needs fast rotation and low cost, choose a traditional brushed motor. If it needs compact high torque and controlled movement, choose a planetary gearbox motor.
