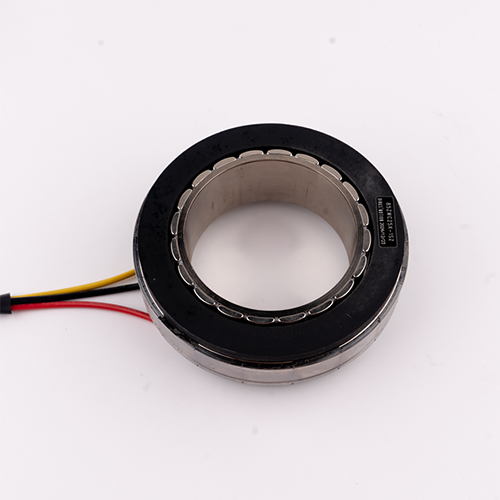

70mm Frameless Torque Motor for High-Torque Direct Drive Applications

Typical Applications of 70mm frameless motor

Application Positioning

The 70mm frameless motor is suitable for industrial applications that require higher continuous torque and robust mechanical integration.

Typical Industries & Use Cases

Common use cases include industrial robot joints, automated handling systems, rotary axes, and precision manufacturing equipment.

• Industrial robot joints and rotary axes

• Automated handling and positioning systems

• Precision rotary tables

• Medical and rehabilitation robots




Integration Value

Its torque capability and thermal stability make 70mm frameless motor well suited for direct-drive solutions operating under continuous or high-duty cycles.

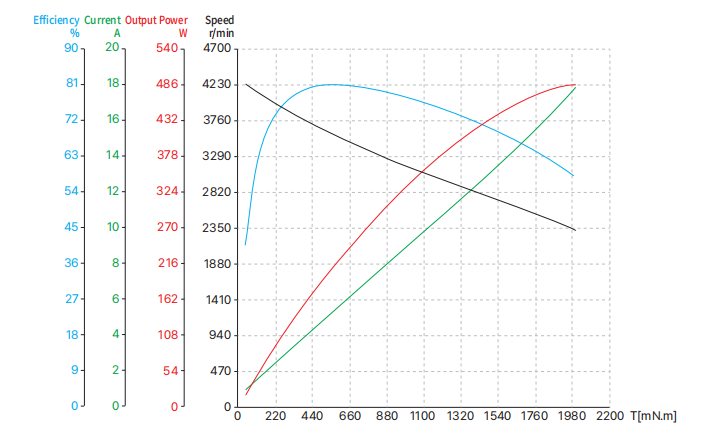

Technical Specifications (70mm Frameless Motor Series)

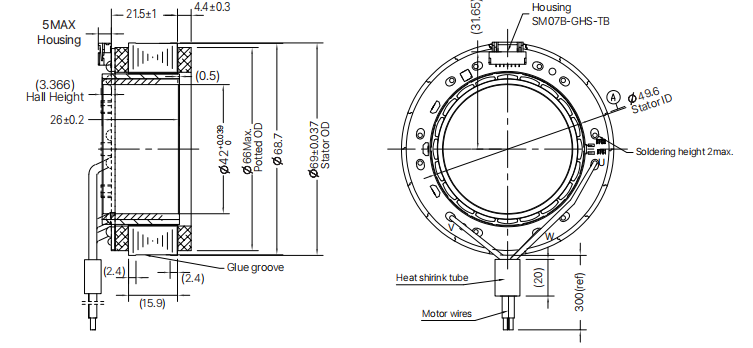

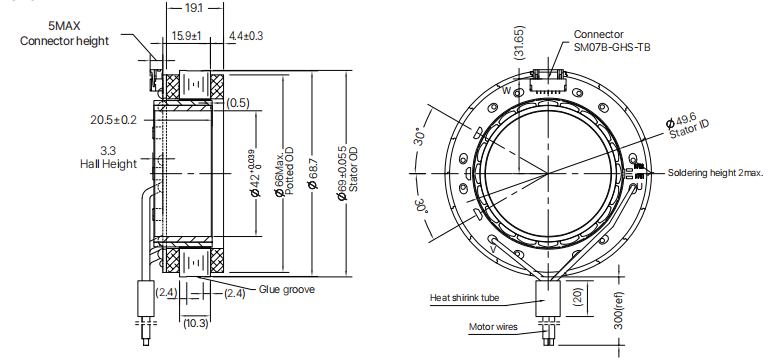

The following technical data applies to the 70mm frameless motor 70ZWC20X-1 and 70ZWC25X-1.

frameless motor.pdf

FAQ – 70mm Frameless Motor

Q1: Is the 70mm frameless motor suitable for continuous torque operation?

Yes, 70mm frameless motor is designed for applications requiring stable continuous torque.

Q2: Can 70mm frameless motor replace a gearbox-based drive system?

In many applications, yes—especially where zero backlash and smooth motion are required.

Q3: Does 70mm frameless motor require additional cooling?

Cooling depends on duty cycle and load; system-level cooling is recommended for higher torque usage.

Q4: Is 70mm frameless motor compatible with servo drives?

Yes, 70mm frameless motor is compatible with mainstream servo and torque controllers.

Q5: Can winding and voltage be customized?

Yes, both can be adapted to your system design.

Q6: Is 70mm frameless motor used in Europe and North America?

Yes, 70mm frameless motor is widely supplied to OEM customers in these markets.
