The Difference Between a Stator and Rotor in a Motor and a Frameless Motor

Introduction to Motor Components

Electric motors are everywhere. They power electric vehicles, industrial machinery, robots, drones, home appliances, and even the tiny cooling fans inside computers. Yet, despite their widespread use, many people are unfamiliar with the two most important parts inside a motor: the stator and the rotor.

If you've ever wondered what makes a motor spin, or why frameless motors are becoming increasingly popular in robotics and automation, this guide will give you a complete understanding of the topic.

Let's dive into the fascinating world of electric motors and uncover the differences between stators, rotors, and frameless motors.

Understanding How Electric Motors Work

At its core, an electric motor converts electrical energy into mechanical motion. This transformation happens through the interaction of magnetic fields.

Think of a motor as a carefully choreographed dance between stationary and moving components. Without either participant, the dance simply cannot happen.

The Basic Principle of Electromagnetic Rotation

When electricity flows through coils of wire, it creates a magnetic field. When this magnetic field interacts with another magnetic field, a force is generated. This force creates rotational movement.

The concept may sound complicated, but it follows the same principle as two magnets pushing or pulling each other.

Why Motors Need Multiple Components

A motor cannot generate motion with a single component. It requires:

• A stationary magnetic field source

• A rotating magnetic field source

• A mechanism to transfer energy into motion

This is where the stator and rotor come into play.

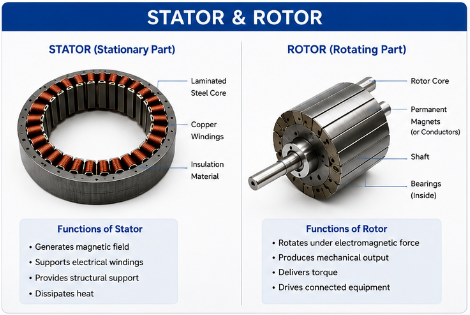

What Is a Stator?

The stator is the stationary part of an electric motor. As its name suggests, it remains fixed while the motor operates.

You can think of the stator as the foundation of a building. It doesn't move, but everything else depends on it.

Structure of a Stator

A typical stator consists of:

• Laminated steel core

• Copper windings

• Insulation materials

• Housing structure

The laminated steel helps reduce energy losses caused by eddy currents, improving overall efficiency.

Functions of a Stator

The stator performs several critical tasks:

• Generates the magnetic field

• Supports electrical windings

• Provides structural stability

• Transfers heat away from active components

Without the stator, there would be no magnetic field to drive motor rotation.

Common Stator Materials

Manufacturers typically use:

• Silicon steel laminations

• Copper wire windings

• High-temperature insulation

• Epoxy resins

These materials ensure durability, efficiency, and thermal stability.

What Is a Rotor?

The rotor is the rotating component of an electric motor. It sits inside the stator and spins when electromagnetic forces are generated.

If the stator is the stage, the rotor is the performer.

Structure of a Rotor

A rotor typically includes:

• Rotor core

• Permanent magnets or conductive bars

• Shaft

• Bearings

Depending on the motor type, rotor construction may vary significantly.

Functions of a Rotor

The rotor's primary responsibilities include:

• Rotating under electromagnetic force

• Producing mechanical output

• Delivering torque

• Driving connected equipment

This rotational motion powers everything from conveyor belts to electric vehicles.

Common Rotor Types

Several rotor designs exist:

Squirrel Cage Rotor

Widely used in induction motors due to its simplicity and durability.

Permanent Magnet Rotor

Common in brushless DC motors and servo motors.

Wound Rotor

Used in specialized industrial applications requiring adjustable speed control.

Stator vs Rotor: Key Differences

Although they work together, stators and rotors serve completely different purposes.

Position and Location

Stator

• Fixed component

• Located on the outer side in most motors

Rotor

• Rotating component

• Located inside the stator

Movement Characteristics

The stator remains stationary throughout operation.

The rotor rotates continuously and delivers mechanical power.

Electrical and Magnetic Roles

The stator usually generates the primary magnetic field through energized windings.

The rotor interacts with that field to create motion and torque.

Manufacturing Considerations

Stators often require precise winding processes.

Rotors demand accurate balancing to minimize vibration and ensure smooth operation.

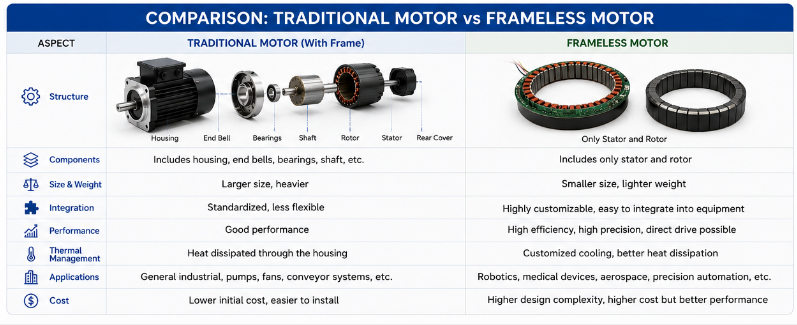

What Is a Frameless Motor?

Traditional motors usually come as complete assemblies with housings, bearings, shafts, and mounting features.

A frameless motor is different.

Definition of a Frameless Motor

A frameless motor is essentially a motor kit that contains only the active electromagnetic components:

• Stator

• Rotor

It does not include:

• External housing

• Shaft

• Bearings

• End caps

This design allows engineers to integrate the motor directly into their machines.

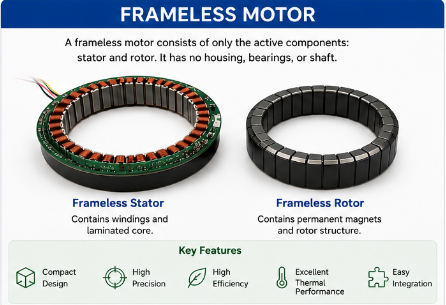

Main Components of a Frameless Motor

A frameless motor generally consists of:

Frameless Stator

Contains windings and laminated core.

Frameless Rotor

Contains permanent magnets and rotor structure.

Together, they form a complete electromagnetic system without a traditional motor frame.

Why Frameless Motors Are Different

Imagine buying only the engine of a race car instead of the entire vehicle.

That's essentially what a frameless motor provides. Engineers can build the motor directly into their equipment for maximum customization and performance.

How Frameless Motors Use Stators and Rotors

Frameless motors still rely on the same basic operating principles as conventional motors.

Frameless Motor Assembly

The stator is mounted directly into the machine structure.

The rotor is attached to the application's rotating mechanism.

Once assembled, the machine itself effectively becomes the motor housing.

Integration into Customer Equipment

This integration offers several benefits:

• Reduced size

• Lower weight

• Increased rigidity

• Improved efficiency

The result is a highly optimized motion system.

Advantages of Frameless Motors

Frameless motors have become increasingly popular in advanced industries.

Compact Design

Traditional motors often occupy valuable installation space.

Frameless motors eliminate unnecessary components, enabling extremely compact designs.

This is particularly important in robotics and aerospace applications.

High Efficiency

Because fewer mechanical transmission components are required, energy losses can be minimized.

Direct-drive configurations further improve efficiency.

Improved Precision

Backlash and mechanical play can significantly affect positioning accuracy.

Frameless motors allow direct integration, reducing these issues and improving motion control precision.

Better Thermal Performance

Engineers can design customized cooling systems around the motor.

This often results in superior heat dissipation compared with standard motor packages.

Applications of Frameless Motors

Frameless motors are increasingly found in cutting-edge technologies.

Robotics

Modern robotic joints demand:

• High torque

• Compact dimensions

• Precise positioning

Frameless motors perfectly meet these requirements.

Industrial robots, humanoid robots, and collaborative robots all benefit from frameless motor technology.

Medical Equipment

Medical devices often require:

• Quiet operation

• Smooth motion

• High reliability

Examples include:

• Surgical robots

• Diagnostic equipment

• Imaging systems

Aerospace Systems

Every gram matters in aerospace engineering.

Frameless motors help reduce weight while maintaining exceptional performance.

Applications include:

• Satellite mechanisms

• Aircraft actuators

• Space robotics

Industrial Automation

Factories increasingly rely on frameless motors for:

• Precision positioning systems

• CNC machinery

• Semiconductor manufacturing equipment

• Automated inspection systems

Choosing Between Traditional and Frameless Motors

Selecting the right motor depends on the application.

Key Factors to Consider

Ask yourself:

• Is space limited?

• Is high precision required?

• Is weight reduction important?

• Will the motor be integrated directly into the machine?

If the answer is yes to most of these questions, a frameless motor may be the ideal choice.

Cost vs Performance

Traditional motors are often easier to install and generally less expensive upfront.

Frameless motors may require more engineering effort, but they can deliver superior performance, efficiency, and system integration.

In many high-end applications, the long-term benefits justify the additional design complexity.

Future Trends in Motor Technology

The future of electric motors is moving toward higher efficiency, smaller sizes, and greater integration.

Several trends are shaping the industry:

• Increased adoption of frameless motors

• Growth of robotics and automation

• Expansion of electric vehicles

• Demand for lightweight aerospace systems

• Advances in magnetic materials

• Improved motor control electronics

As industries continue to pursue smarter and more compact machines, frameless motors are expected to play an increasingly important role.

Conclusion

Understanding the difference between a stator and rotor is essential for anyone involved in motor technology. The stator serves as the stationary component that generates the magnetic field, while the rotor is the rotating element that converts electromagnetic energy into useful mechanical motion.

Together, these two components form the heart of every electric motor.

Frameless motors take this concept one step further by removing the traditional housing, bearings, and shaft, leaving only the stator and rotor. This streamlined design enables engineers to integrate motors directly into machinery, resulting in lighter, smaller, more efficient, and more precise systems.

As robotics, automation, medical technology, and aerospace industries continue to evolve, frameless motors are becoming a preferred solution for applications where performance and compactness matter most. Whether you're designing advanced robotic joints or developing next-generation industrial equipment, understanding how stators, rotors, and frameless motors work together will help you make better engineering and purchasing decisions.
