The Difference Between Frameless Motors and Outer Rotor Motors in 2026

Introduction

Electric motor technology is evolving faster than ever. As industries such as robotics, drones, electric vehicles, medical equipment, and industrial automation continue to grow, engineers are constantly searching for motors that are lighter, more efficient, and easier to integrate.

Two technologies that frequently appear in design discussions are frameless motors and outer rotor motors. While both are widely used in modern motion systems, they serve very different purposes and offer unique advantages.

So, which one is better? The answer depends entirely on your application.

In this article, we'll explore the key differences between frameless motors and outer rotor motors in 2026, compare their performance, and help you determine which technology is the best fit for your next project.

Understanding Modern Electric Motor Technology

Why Motor Selection Matters

Choosing a motor isn't just about power. It's about finding the perfect balance between torque, efficiency, size, weight, reliability, and cost.

Think of a motor as the heart of a machine. If the heart isn't matched to the body, performance suffers.

Whether you're designing a humanoid robot or an underwater propulsion system, the motor can make or break your product.

The Growth of High-Performance Motion Systems

In 2026, the demand for compact and efficient motors is higher than ever. AI-powered robots, autonomous drones, collaborative robots, and electric marine propulsion systems all require advanced motor solutions.

This growing demand has pushed frameless and outer rotor motors into the spotlight.

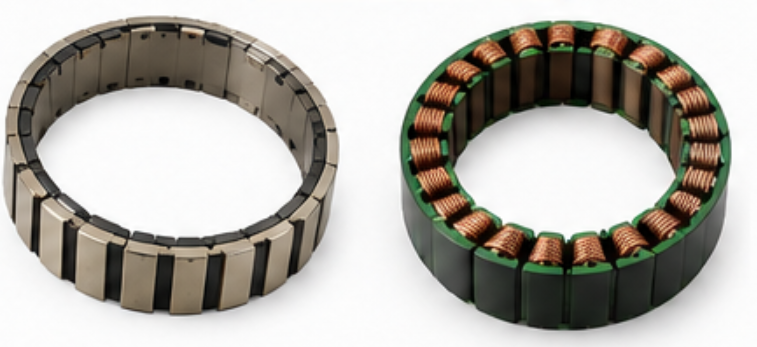

What Is a Frameless Motor?

Structure of a Frameless Motor

A frameless motor is essentially a motor without a housing, bearings, shaft, or mounting structure.

Manufacturers typically provide only two components:

• Rotor

• Stator

Everything else is integrated directly into the customer's mechanical system.

Rotor and Stator Components

The rotor contains permanent magnets, while the stator contains copper windings.

Because the motor lacks an external frame, engineers can integrate it directly into robotic joints, medical devices, or custom machinery.

Integration into Customer Systems

Imagine buying only the engine of a car and building the rest yourself. That's similar to using a frameless motor.

This design allows engineers to create extremely compact and lightweight systems.

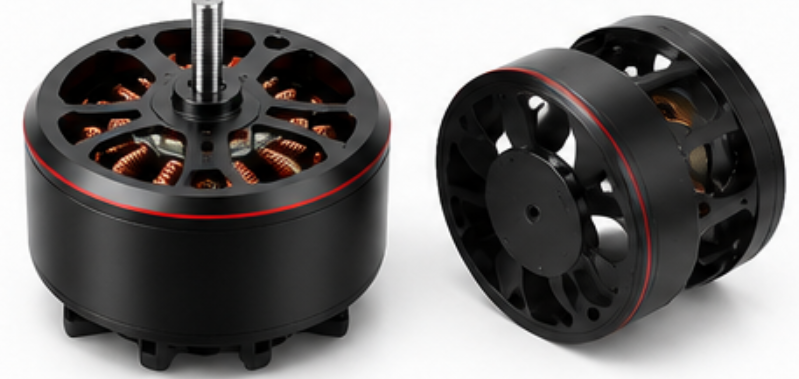

What Is an Outer Rotor Motor?

Structure of an Outer Rotor Motor

An outer rotor motor features a rotor that rotates around the outside of the stator.

Unlike conventional motors where the rotor spins inside the stator, the outer shell becomes the rotating component.

Rotor Outside the Stator

The larger rotating diameter creates a mechanical advantage.

Just like using a longer wrench provides more leverage, the larger rotor diameter produces higher torque.

Complete Motor Assembly

Unlike frameless motors, outer rotor motors are usually supplied as complete assemblies including:

• Housing

• Bearings

• Shaft

• Rotor

• Stator

This makes installation significantly easier.

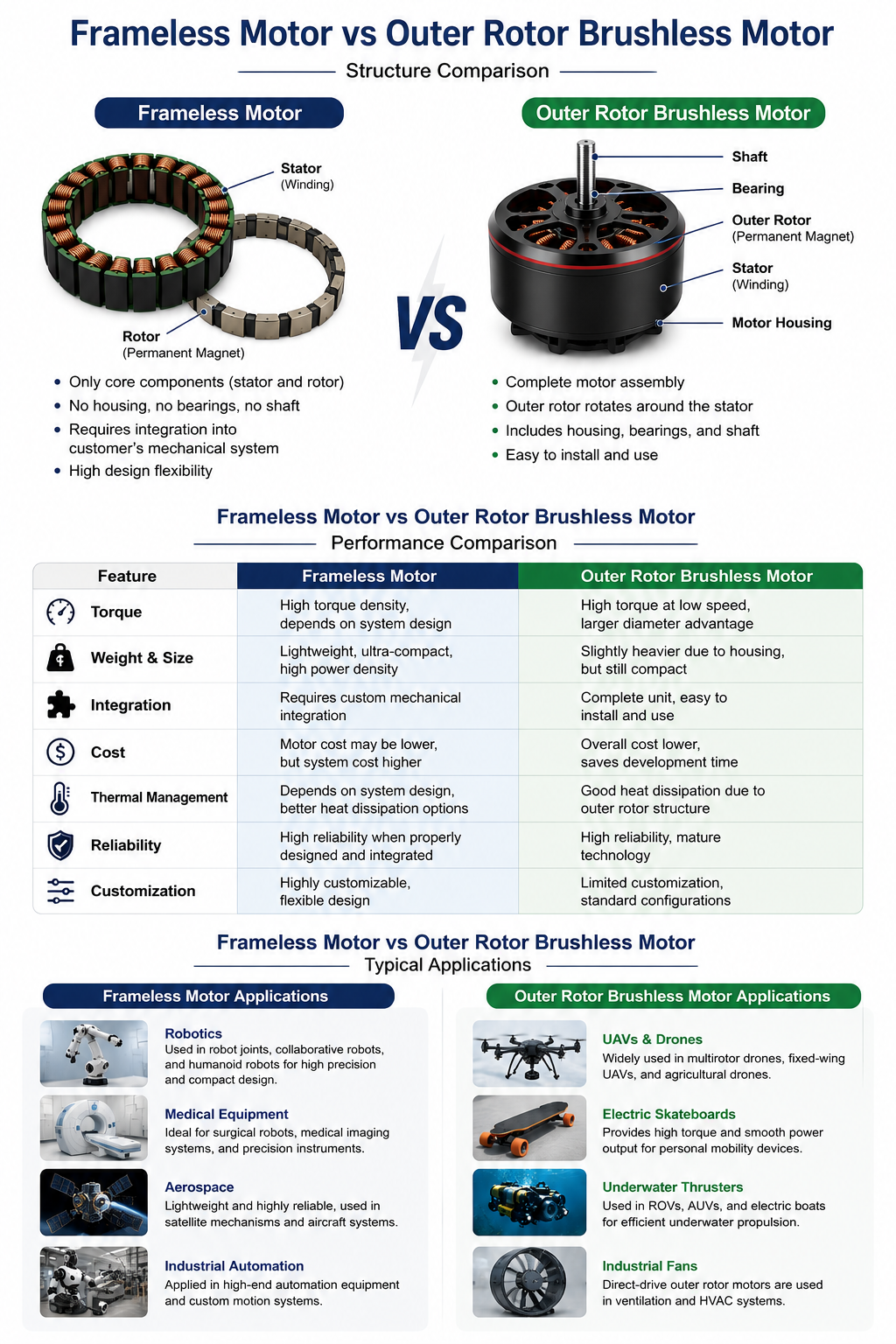

Core Differences Between Frameless Motors and Outer Rotor Motors

Mechanical Design

The biggest difference is construction.

Frameless motors provide only electromagnetic components.

Outer rotor motors arrive as complete operational units.

Frameless motors prioritize integration flexibility, while outer rotor motors prioritize simplicity and performance.

Torque Characteristics

Outer rotor motors generally produce higher torque at lower speeds.

The larger rotor diameter acts like a longer lever arm.

Frameless motors can also achieve high torque but often require custom mechanical integration and gearing.

Weight and Size

Frameless motors typically offer the highest power density.

Because there is no external housing, unnecessary weight is eliminated.

Outer rotor motors remain compact but include additional mechanical components.

Installation Complexity

This is where the two technologies differ dramatically.

Frameless motors require:

• Precision assembly

• Custom bearings

• Alignment procedures

• Mechanical engineering expertise

Outer rotor motors often work almost immediately after installation.

For many projects, this simplicity saves substantial development time.

Cost Considerations

At first glance, frameless motors may appear cheaper because they contain fewer parts.

However, total system cost is often higher due to:

• Custom mechanical design

• Precision machining

• Assembly labor

• Testing requirements

Outer rotor motors generally provide lower overall implementation costs.

Performance Comparison in 2026

Efficiency

Both motor types can achieve excellent efficiency levels.

Modern designs frequently exceed 90% efficiency.

However, efficiency often depends more on motor design quality than on whether the motor is frameless or outer rotor.

Thermal Management

Frameless motors offer unique cooling opportunities because engineers can integrate custom heat dissipation systems.

Outer rotor motors benefit from natural airflow generated by the rotating shell.

In many applications, both solutions perform exceptionally well.

Reliability

Reliability depends heavily on manufacturing quality.

A properly integrated frameless motor can last for years.

Outer rotor motors, meanwhile, offer proven reliability with fewer assembly variables.

For most OEMs, outer rotor systems provide a more predictable reliability profile.

Applications of Frameless Motors

Robotics

Humanoid robots increasingly use frameless motors inside joints.

The ability to integrate the motor directly into the robotic structure saves space and improves motion control.

Companies developing advanced robotic arms frequently choose frameless designs.

Medical Equipment

Medical devices demand precision and compact packaging.

Frameless motors are commonly used in:

• Surgical robots

• Medical scanners

• Diagnostic systems

• Rehabilitation equipment

Their compact design makes them ideal for these environments.

Aerospace Systems

Every gram matters in aerospace applications.

Frameless motors help reduce weight while maximizing performance.

Applications include:

• Satellite mechanisms

• Aircraft actuators

• Space robotics

Applications of Outer Rotor Motors

UAVs and Drones

Outer rotor motors dominate the drone industry.

Their high torque output allows propellers to spin efficiently without requiring gearboxes.

Agricultural drones, mapping drones, delivery drones, and FPV racing drones all rely heavily on outer rotor technology.

Electric Skateboards

Many electric skateboard systems use outer rotor motors because they provide direct-drive performance and excellent torque.

The result is smooth acceleration and reduced maintenance.

Underwater Thrusters

Outer rotor motors are increasingly used in:

• ROVs

• AUVs

• Underwater scooters

• Electric marine propulsion systems

Models such as 6374 and 6384 outrunner motors are popular in these applications.

Industrial Fans

Industrial ventilation systems frequently utilize outer rotor motors.

The motor integrates directly with the fan impeller, reducing complexity and improving efficiency.

Advantages of Frameless Motors

Frameless motors offer several benefits:

• Highest integration flexibility

• Exceptional power density

• Reduced system weight

• Compact packaging

• Superior customization potential

• Excellent precision control

For advanced engineering teams, frameless motors unlock enormous design freedom.

Advantages of Outer Rotor Motors

Outer rotor motors also deliver impressive benefits:

• High torque output

• Simple installation

• Lower total project cost

• Reduced development time

• Proven reliability

• Excellent efficiency

These advantages explain why outer rotor motors dominate many commercial applications.

Challenges and Limitations

Frameless Motor Limitations

Despite their benefits, frameless motors present challenges:

• Complex assembly

• Higher engineering requirements

• Increased development costs

• Longer project timelines

Not every company has the expertise required for successful integration.

Outer Rotor Motor Limitations

Outer rotor motors also have drawbacks:

• Less design flexibility

• Larger rotating mass

• Lower integration freedom

• Potential exposure to environmental hazards

In highly specialized systems, these limitations may become important.

Which Motor Is Better for Your Project?

When to Choose a Frameless Motor

Choose a frameless motor if you need:

• Maximum customization

• Compact robotic joints

• Lightweight aerospace systems

• Precision medical equipment

• High-end automation solutions

Frameless motors excel when integration flexibility matters most.

When to Choose an Outer Rotor Motor

Choose an outer rotor motor if you need:

• High torque

• Fast deployment

• Lower costs

• UAV propulsion

• Underwater propulsion

• Electric mobility products

For many commercial applications, outer rotor motors provide the most practical solution.

Future Trends in 2026 and Beyond

Several trends are shaping both technologies:

• Higher-energy permanent magnets

• Advanced cooling systems

• Integrated sensors

• AI-driven motor control

• Lightweight composite materials

• Improved manufacturing precision

Frameless motors will continue expanding into robotics and aerospace.

Outer rotor motors will remain dominant in drones, marine propulsion, personal mobility, and industrial equipment.

Rather than competing directly, these technologies are increasingly complementing each other.

Conclusion

The debate between frameless motors and outer rotor motors isn't about which technology is universally better. It's about choosing the right tool for the job.

Frameless motors offer unmatched integration flexibility, lightweight construction, and customization potential. They are ideal for robotics, medical devices, and aerospace systems where every millimeter counts.

Outer rotor motors deliver outstanding torque, ease of installation, reliability, and cost-effectiveness. They remain the preferred choice for drones, electric boats, underwater thrusters, electric skateboards, and industrial fans.

In 2026, both technologies continue to evolve rapidly. Engineers who understand their strengths and limitations can build more efficient, reliable, and innovative products that stand out in increasingly competitive markets.

Frequently Asked Questions

Are frameless motors more efficient than outer rotor motors?

Not necessarily. Both technologies can achieve efficiencies above 90%, depending on design quality and operating conditions.

Why do drones use outer rotor motors?

Outer rotor motors provide high torque at low speeds, allowing drone propellers to operate efficiently without gear reduction systems.

Are frameless motors more expensive?

The motor itself may not always be more expensive, but total system integration costs are often higher.

Can outer rotor motors be used in robots?

Yes. Many mobile robots and collaborative robots use outer rotor motors, especially when high torque is required.

Which motor type has the best future potential?

Both have strong growth prospects. Frameless motors are expanding rapidly in robotics and medical technology, while outer rotor motors continue dominating UAVs, marine propulsion, and electric mobility applications.
