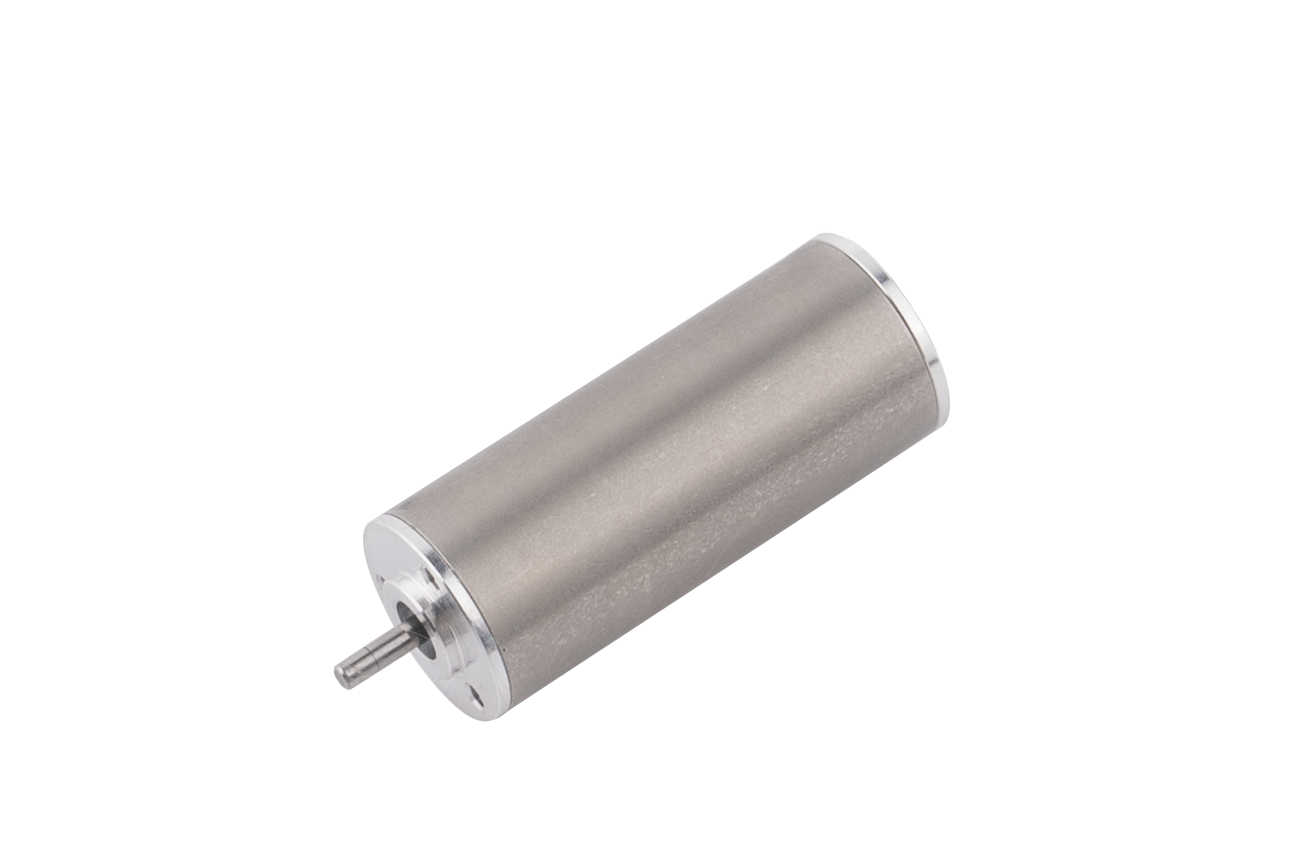

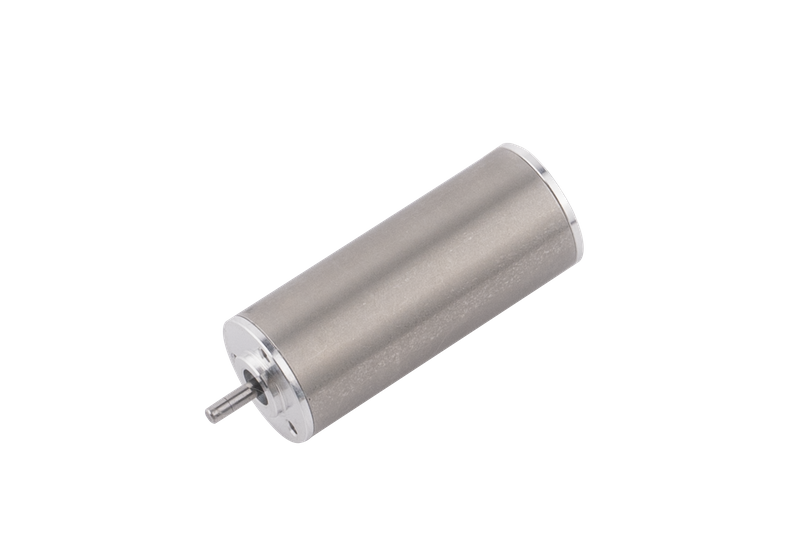

14mm Slotless Brushless Motor for Compact Motion Systems

Typical Applications of 14mm Slotless Brushless DC Motor

14mm slotless brushless dc motor is commonly used in compact systems that demand stable motion quality and higher mechanical robustness.

Typical applications include:

• Compact servo mechanisms

• Camera focusing and positioning systems

• Small robotic actuators

• Precision dosing and dispensing devices




Application Highlights

• Stable rotation under varying loads

• Reduced acoustic noise in enclosed systems

• High repeatability for precision positioning

• Excellent compatibility with modern BLDC drives

Technical Specifications of 14mm Slotless Brushless DC Motor

The following technical data applies to the 14mm slotless brushless DC motor.

Electrical Parameters

• Rated voltage options: 6V etc.

• Rated speed: 15000rpm(customized)

• Rated Torque: 4mN.m(customized)


• Output power: 5.1W(customized)

Optional Configurations

• Hall sensors or encoder feedback

• Customized shaft or connector types

• Cable or terminal variations




Slotless motor.pdf

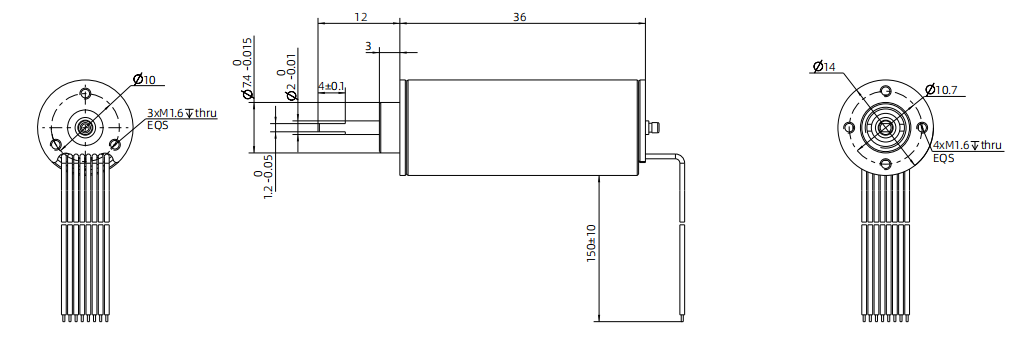

Dimension Drawing of 14mm slotless brushless motor 14ZWWC36

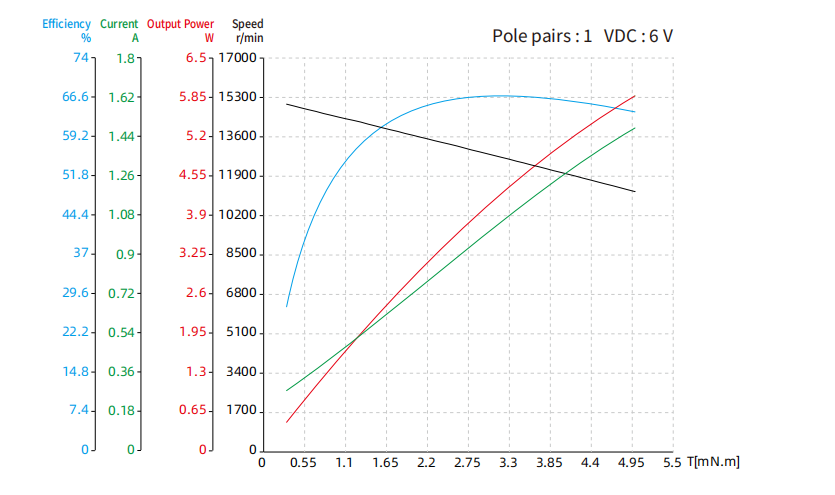

Performance Curve of 14mm slotless brushless motor 14ZWWC36

FAQ –14mm Slotless Brushless DC Motor

Q1: Can 14mm slotless brushless dc motor work as a servo motor?

Yes, when paired with a suitable controller and encoder.

Q2: Does the slotless design improve positioning accuracy?

Yes. It significantly reduces torque ripple and improves control smoothness.

Q3: Is active cooling required?

No. Natural cooling is sufficient in most applications.

Q4: Is customization available?

Yes. Electrical and mechanical parameters can be tailored.

Q5: Is 14mm slotless brushless dc motor suitable for robotic applications?

Yes, especially for compact robotic joints and actuators.

Q6: Do you support prototype and volume production?

Yes, from early development to mass production.
