56mm brushless planetary gear motor – Product Overview
![56mm brushless gear motor 1]( "56mm brushless gear motor 1")
56mm BLDC Gear Motor for Medium-Load Motion Control
The 56mm brushless planetary gear motor is designed for applications where a compact motor needs to deliver stronger output torque after reduction. The brushless DC motor provides stable rotation and long service life, while the planetary gearbox converts motor speed into practical output torque for mechanical systems.
This makes the 56mm brushless planetary gear motor suitable for equipment that requires controlled movement, repeatable operation and stronger transmission capacity. It is especially useful in applications where smaller gear motors may not provide enough torque reserve or where brushed motors may not meet lifetime requirements.
24V Brushless Motor Platform with Hall Feedback
The representative 56mm brushless planetary gear motor model shown is based on a 24V DC brushless motor platform. The base motor provides rated torque of approximately 0.28N·m, rated current of approximately 3.39A, and rated speed of around 2000rpm before gearbox reduction.
The motor connection diagram shows Hall sensor and phase wiring, including Hall signal wires and motor phase wires. Hall feedback helps the controller detect rotor position, improve startup performance and provide more reliable operation during speed and direction control.
Wide Gear Ratio Range from 4.3:1 to 836:1
The gearbox ratio selection is one of the most important features of this motor series. The representative table includes ratios such as 4.3, 5.2, 6.75, 18, 29, 36, 79, 150, 236, 531 and 836.
Lower Ratios for Faster Output
Ratios such as 4.3:1, 5.2:1 and 6.75:1 are suitable for applications that require relatively faster output speed while still increasing torque. These versions can be used in rotating platforms, drive rollers, compact transmission modules and medium-speed automation systems.
Medium Ratios for Balanced Transmission
Ratios such as 18:1, 29:1, 36:1 and 79:1 are suitable for applications that require a balance of output speed, torque and gearbox length. These configurations are often used in actuators, robotic mechanisms, smart machines and automatic adjustment systems.
Higher Ratios for Low-Speed High-Torque Motion
Ratios such as 150:1, 236:1, 531:1 and 836:1 are suitable for low-speed, high-torque applications. These versions are useful for lifting mechanisms, locking modules, slow positioning systems, valve drives and heavy adjustment structures.
Planetary Gearbox Stages for Torque and Length Selection
The gearbox can be configured with 1-stage, 2-stage, 3-stage or 4-stage planetary reduction structures. The stage selection affects output torque, output speed, gearbox length and overall motor size.
A 1-stage gearbox is shorter and provides higher output speed. A 2-stage or 3-stage gearbox gives stronger reduction and higher torque. A 4-stage gearbox is suitable for very low-speed and high-torque requirements, but the total motor length becomes longer. This allows OEM engineers to balance torque requirement, available space and mechanical design.
Engineering Selection Notes
Define the Final Output Speed First
For a brushless planetary gear motor, the final output speed is determined by the motor speed and gearbox ratio. Before selecting a model, customers should confirm the required output rpm at the shaft.
If the application requires faster movement, a lower gear ratio may be suitable. If the application needs slow and controlled movement, a higher gear ratio should be considered.
Confirm Working Torque and Peak Load
The required torque should include normal running torque, starting torque and peak load. For applications with frequent start-stop, reversing, lifting or sudden load changes, torque margin is very important.
The representative data shows output torque options from approximately 1.1N·m to 153.6N·m depending on ratio. Customers should not select only by maximum torque. The correct choice should also consider gearbox strength, duty cycle, lifetime and installation condition.
Match the Motor with the Correct BLDC Controller
56mm brushless planetary gear motor requires a suitable BLDC controller. The controller should match the motor voltage, current, Hall sensor signals and motor phase wiring.
Customers should confirm whether the system requires speed control, direction control, PWM input, analog speed control, braking function, alarm output or communication interface. Correct controller matching helps improve startup stability and motion performance.
Consider Gearbox Backlash for Positioning Systems
For positioning applications, gearbox backlash can affect repeatability and control accuracy. If the motor is used in robotic joints, precision tables, valve positioning or adjustment systems, customers should discuss backlash requirements during the sample stage.
Evaluate Heat Rise Under Real Working Conditions
Even though brushless motors have good efficiency and long life, heat rise still depends on load torque, current, working time, gearbox ratio, ambient temperature and installation environment. For continuous operation or high-load intermittent operation, real-load testing is recommended.
Customization Options
Gear Ratio Customization
Modar Motor can help select or customize the gearbox ratio according to the required output speed and torque. Representative ratios include 4.3, 5.2, 6.75, 18, 29, 36, 79, 150, 236, 531 and 836.
Output Shaft Customization
The output shaft can be customized according to the customer’s mechanical connection method. Common options include round shaft, D-cut shaft, flat shaft, threaded shaft, keyway shaft, extended shaft or special machined shaft.
Mounting Interface Customization
The gearbox front flange, mounting holes, locating diameter and housing structure can be adjusted according to customer drawings. This helps the motor fit into automation modules, robotic mechanisms and existing equipment structures.
Hall Wiring and Connector Customization
Hall sensor wiring, phase wire length, connector model, cable outlet direction and wiring definition can be customized to match the customer's controller and assembly process.
Voltage, Speed and Torque Customization
The representative 56mm brushless planetary gear motor model is based on 24V DC, but Modar Motor can evaluate customized voltage, motor winding, speed and torque requirements according to application needs and order quantity.
Gearbox Stage and Length Optimization
Different gearbox stages result in different total lengths. Customers can choose a shorter motor for limited installation space or a longer gearbox structure for stronger reduction and higher torque.
Key Product Advantages
Stronger Torque Than Smaller BLDC Gear Motors
The 56mm frame provides more output capacity than smaller 42mm and 44mm brushless planetary gear motors, making 56mm brushless planetary gear motor suitable for medium-load and higher-load OEM applications.
Brushless Design for Long Service Life
The BLDC structure avoids brush wear, reducing maintenance needs and improving lifetime in frequent start-stop or long-duty applications.
Planetary Gearbox for Compact High-Torque Transmission
The planetary gearbox provides high torque density in a compact structure, making it suitable for equipment where space is limited but torque demand is high.
Wide Ratio Selection for Flexible Motion Design
With ratios from approximately 4.3:1 to 836:1, the same motor platform can support faster output, balanced transmission or very slow high-torque movement.
Hall Feedback for Reliable Control
Hall sensor feedback supports better rotor position detection, smoother startup and improved controller matching for speed and direction control.
OEM Customization Support from Modar Motor
Modar Motor supports customized BLDC planetary gear motor solutions, including voltage, ratio, shaft, flange, Hall wiring, connector, speed, torque and gearbox configuration.
Typical Application of 56mm brushless planetary gear motor
Industrial Automation Equipment
The 56mm brushless planetary gear motor can be used in automation systems requiring stable torque and controlled movement. Typical uses include feeding mechanisms, indexing systems, rotating platforms, compact conveyors and automatic adjustment modules.
Robotic Drive Modules
56mm brushless planetary gear motor is suitable for robotic mechanisms where compact size, torque density and reliable control are important. It can be used in robotic joints, grippers, rotary modules and mobile robot auxiliary drives.
AGV Auxiliary Mechanisms
56mm brushless planetary gear motor can be applied in AGV auxiliary systems, such as lifting modules, locking devices, steering accessories or positioning mechanisms. For AGV applications, voltage, duty cycle and controller compatibility should be reviewed carefully.
Electric Actuators and Valve Control
The planetary gearbox allows the motor to provide lower speed and higher torque, making it suitable for electric actuators, valve actuators, locking mechanisms and slow adjustment systems.
Smart Machinery and Commercial Equipment
The 56mm brushless planetary gear motor can be used in smart cabinets, automatic doors, service equipment, vending machines, packaging devices and other commercial machines requiring controlled movement and reliable operation.
Customized OEM Motion Systems
OEM customers can use 56mm brushless planetary gear motor as the core drive component in customized motion modules. Modar Motor can support ratio selection, shaft customization, wiring design and performance testing according to customer requirements.
Technical Specifications of 56mm brushless planetary gear motor
The following technical data applies to the 56mm Brushless planetary gear Motor.
Electrical Parameters
Rated voltage options: 24V etc.
Rated speed: 2.7~534rpm(customized)
Rated Torque: 1.1~153.6N.m(customized)
Output power range: 38~53W(customized)
Mechanical Parameters
Optional Configurations
![]()
brushless dc motor specification.pdf

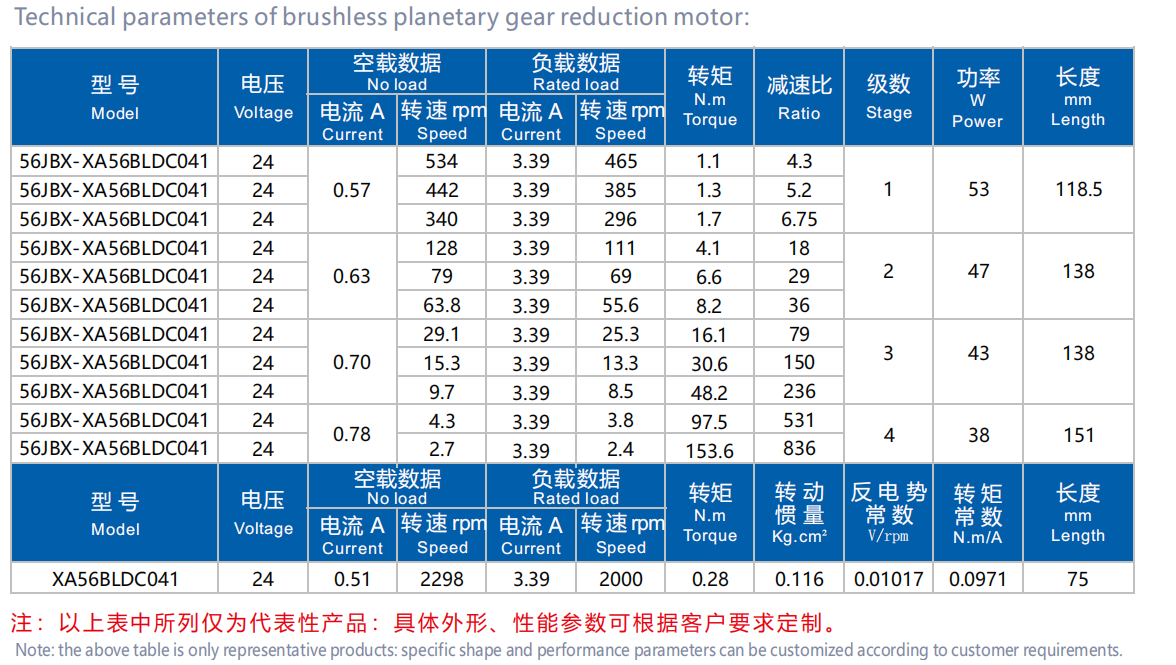

| Motor Characteristics |
![56mm brushless gear motor specification]( "56mm brushless gear motor specification") |

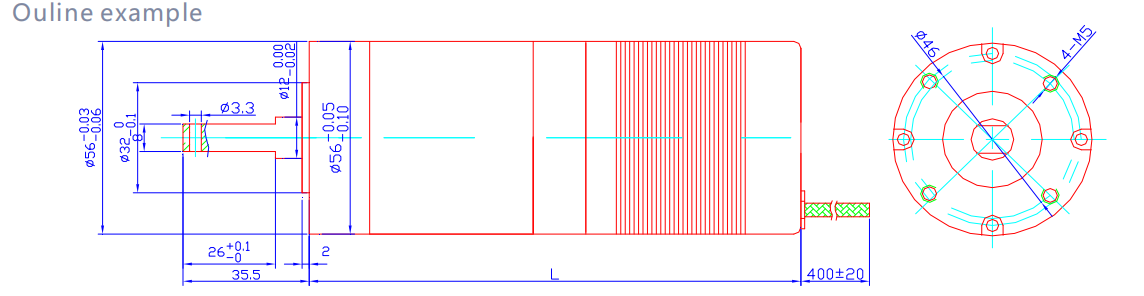

| 56mm brushless planetary gear motor Drawing |
![56mm brushless gear motor drawing]( "56mm brushless gear motor drawing") |

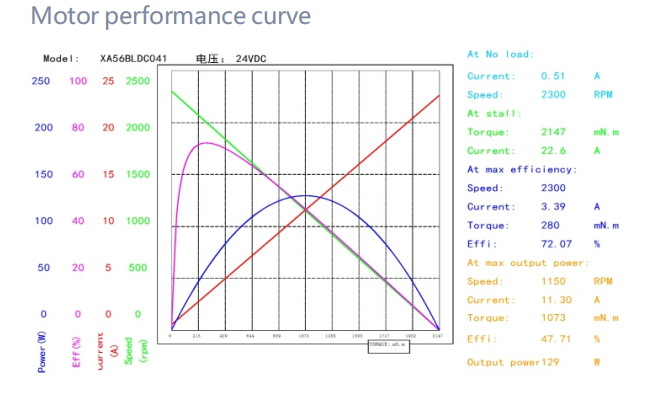

| 56mm brushless planetary gear motor Performance Curve |
![56mm brushless gear motor performance curve]( "56mm brushless gear motor performance curve") |

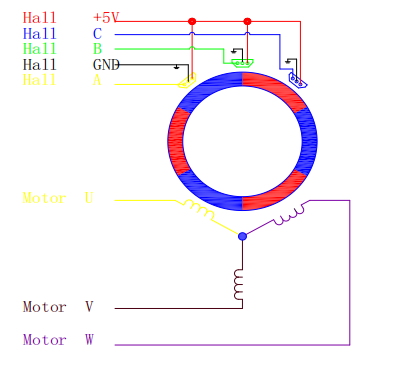

| 56mm brushless planetary gear motor wiring diagram |
![56mm brushless gear motor wiring]( "56mm brushless gear motor wiring") |
FAQ –56mm brushless planetary gear motor
What is 56mm brushless planetary gear motor?
56mm brushless planetary gear motor is a 24V BLDC motor combined with a planetary gearbox. The brushless motor provides stable high-speed rotation, while the gearbox reduces speed and increases output torque for automation, robotics and OEM motion systems.
What voltage does 56mm brushless planetary gear motor use?
The representative model uses a 24V DC platform. Other voltage requirements may be evaluated depending on the application and order quantity.
What gear ratios are available?
Representative ratios include 4.3, 5.2, 6.75, 18, 29, 36, 79, 150, 236, 531 and 836. The correct ratio depends on required output speed and torque.
What is the output torque range?
According to the representative data, output torque ranges from approximately 1.1N·m to 153.6N·m, depending on gearbox ratio and stage.
Does 56mm brushless planetary gear motor have Hall sensors?
Yes. The wiring diagram includes Hall sensor and motor phase connections. Hall feedback helps improve startup, commutation and speed control when used with a suitable BLDC controller.
Is 56mm brushless planetary gear motor suitable for robotics?
Yes. The 56mm brushless planetary gear motor is suitable for robotic drive modules, grippers, rotary mechanisms and smart automation systems requiring compact high-torque transmission.
Can the output shaft be customized?
Yes. Modar Motor can customize shaft length, diameter, flat shaft, D-cut shaft, threaded shaft, keyway or special shaft structures according to customer drawings.
Can the gearbox ratio be customized?
Yes. The gearbox ratio can be selected or customized based on required output speed, torque, gearbox length and installation space.
What information should I provide for motor selection?
Please provide voltage, required output speed, required torque, duty cycle, load type, shaft drawing, mounting dimensions, controller information, working environment and estimated quantity.
Does Modar Motor support OEM customization?
Yes. Modar Motor supports OEM and ODM customization for brushless planetary gear motors, including voltage, gear ratio, shaft, mounting interface, Hall wiring, connector, speed, torque and gearbox structure.
